Solar Sensor Lamp

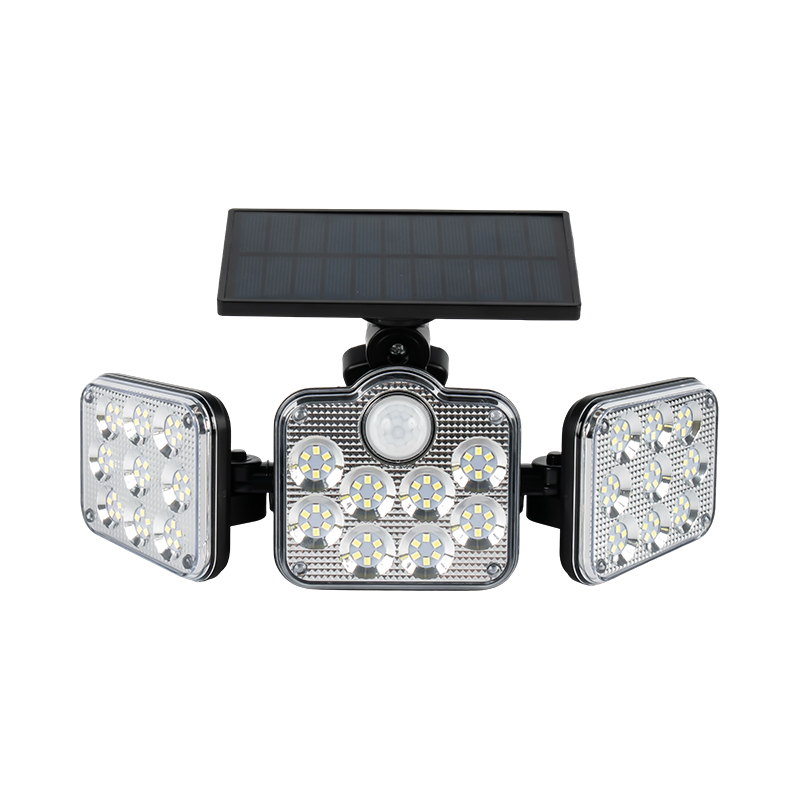

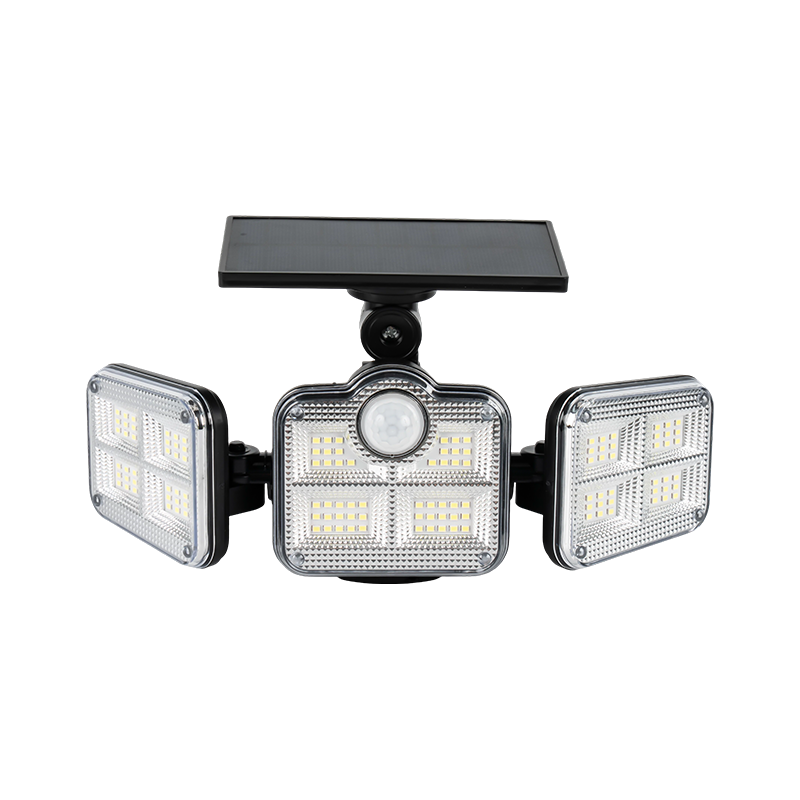

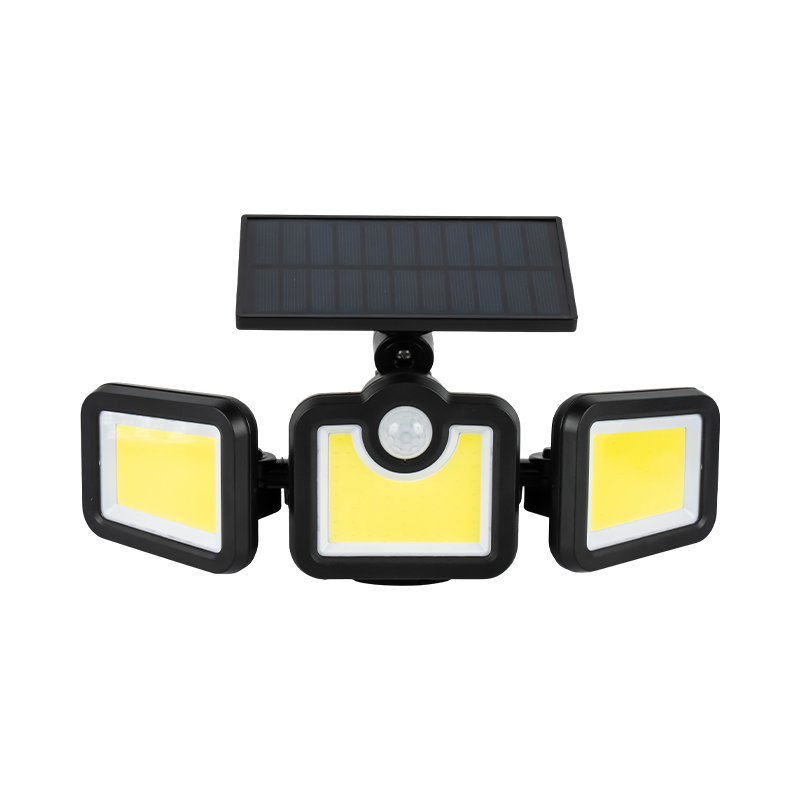

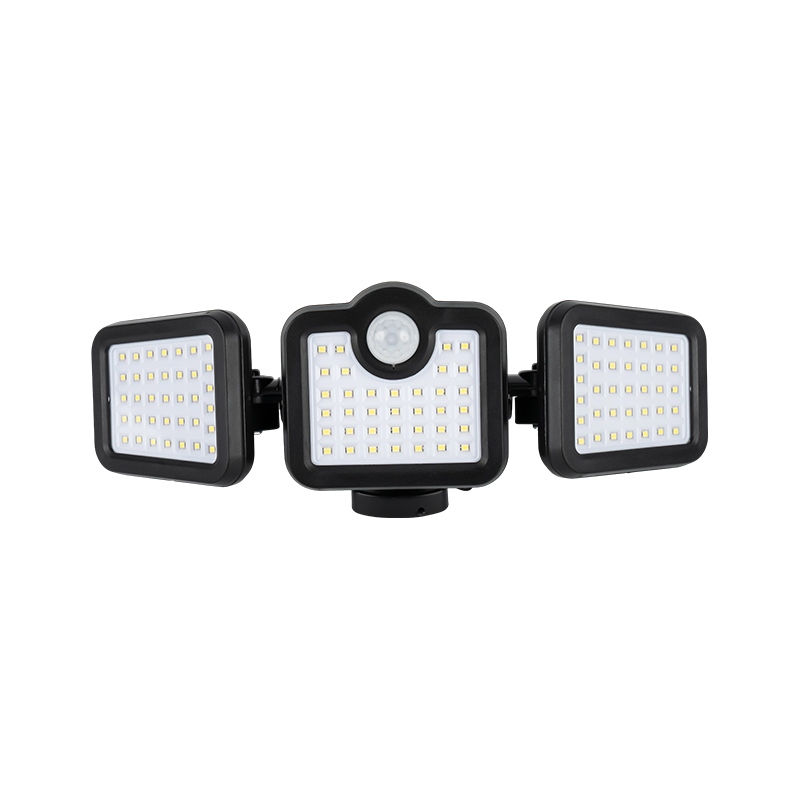

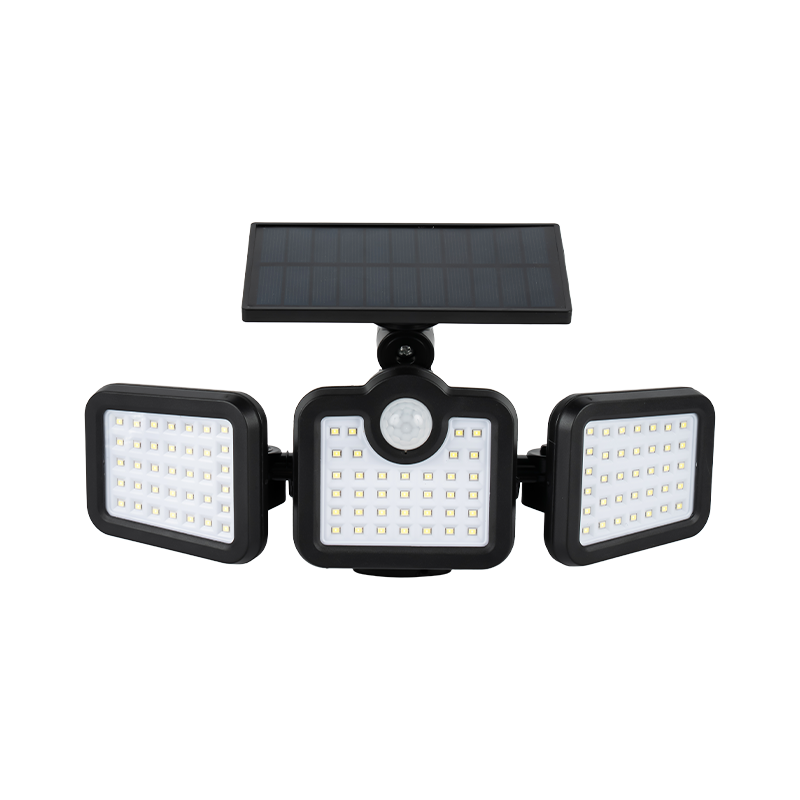

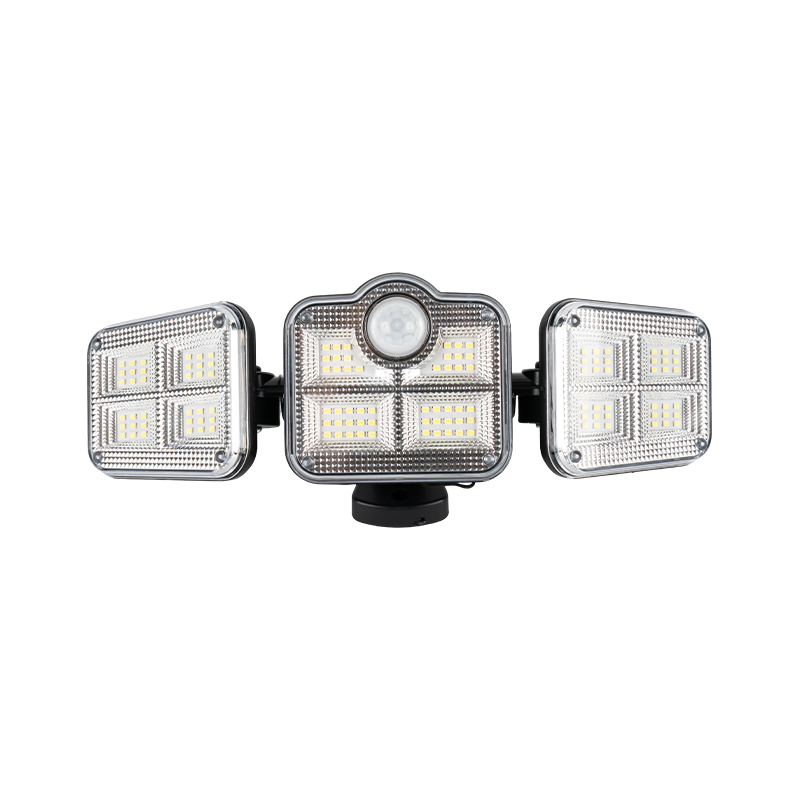

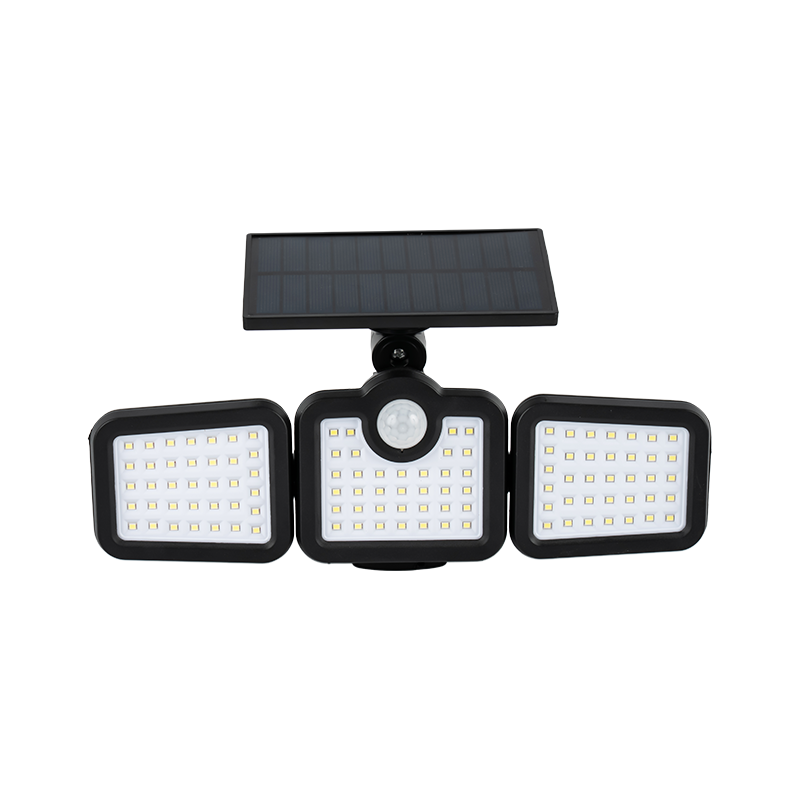

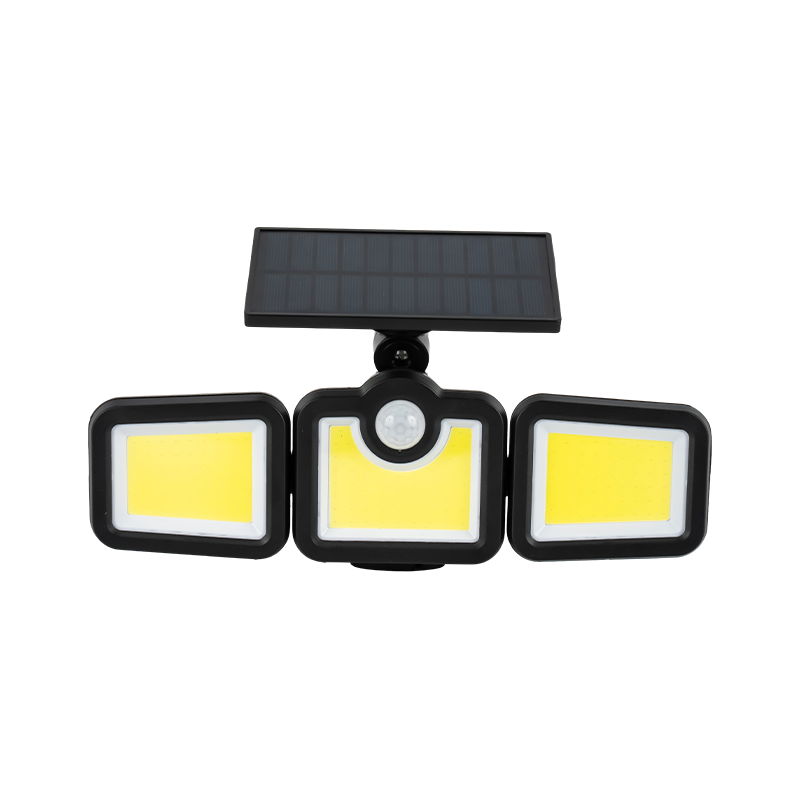

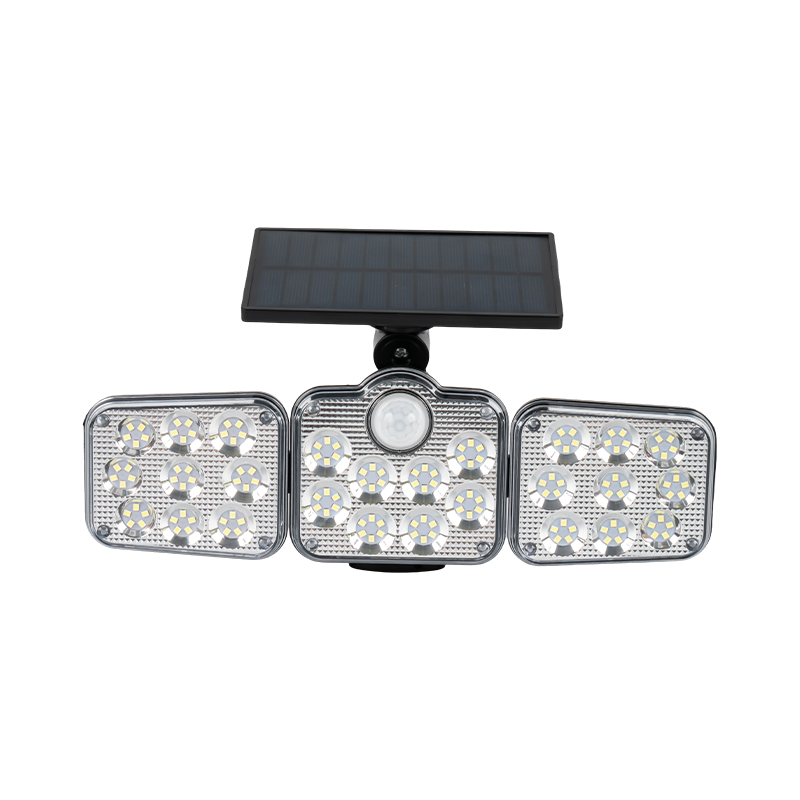

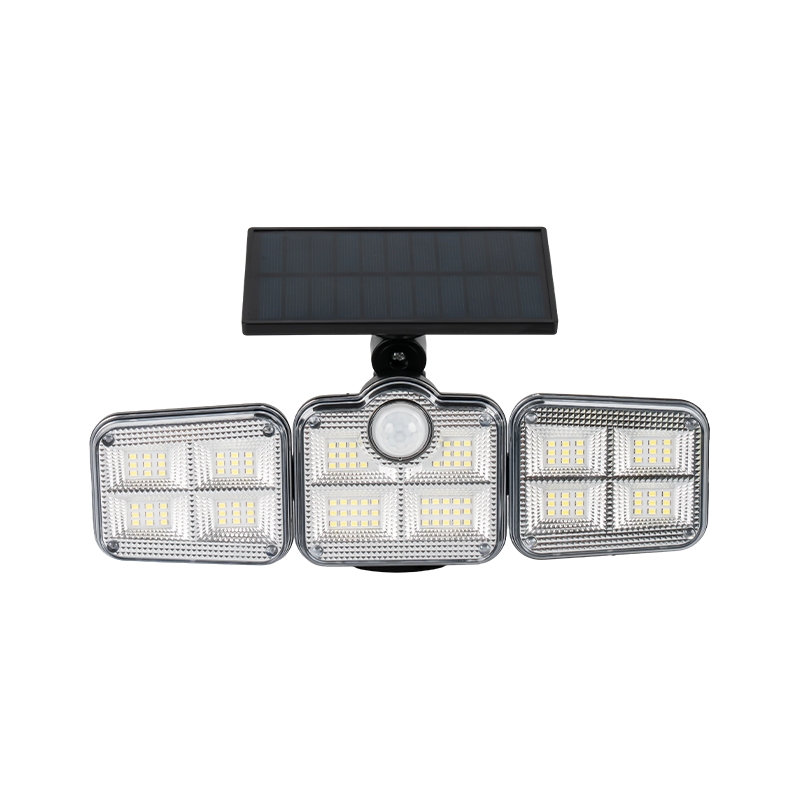

SSL2656/2757/2858/2959 3-Head Solar Wall Light

Key Features
Solar Powered, No Wiring — High-efficiency polycrystalline solar panel charges the built-in battery automatically during the day.
Smart PIR Motion Sensor — Detects human movement within 3–5m and 120° angle, turns on automatically at night.

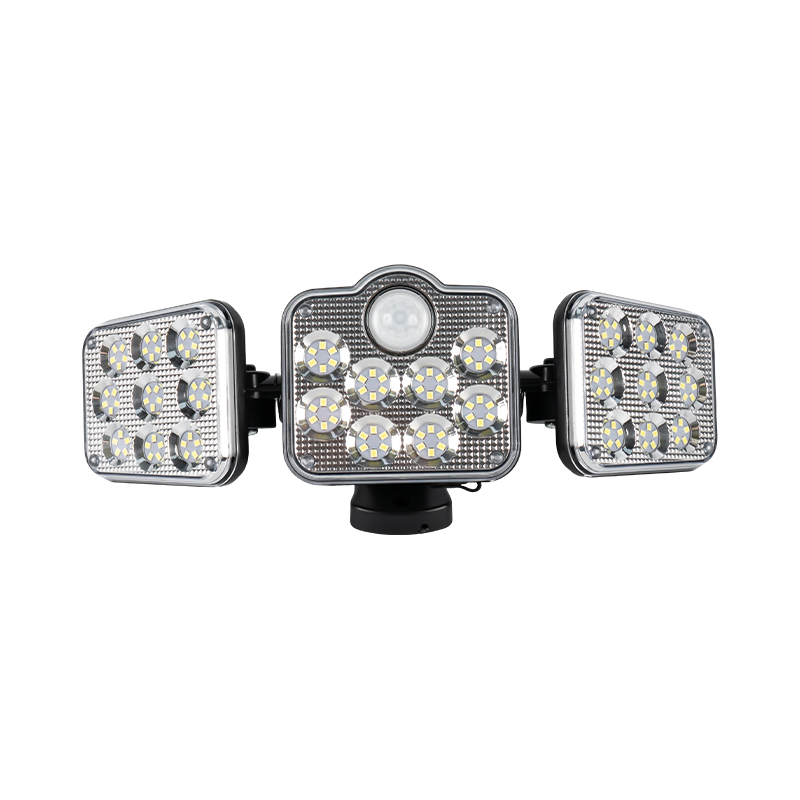

3-Head LED Design — 108–171 LEDs deliver 420–480lm wide-area wall lighting.
3 Working Modes — Motion Only / Motion + Dim / Constant Dim, suitable for security, pathway and ambient lighting.
Remote Control — Conveniently switch modes or turn the light on/off from a distance.
Rechargeable 18650 Battery — 2×1200mAh built-in battery, supports repeated solar charging.

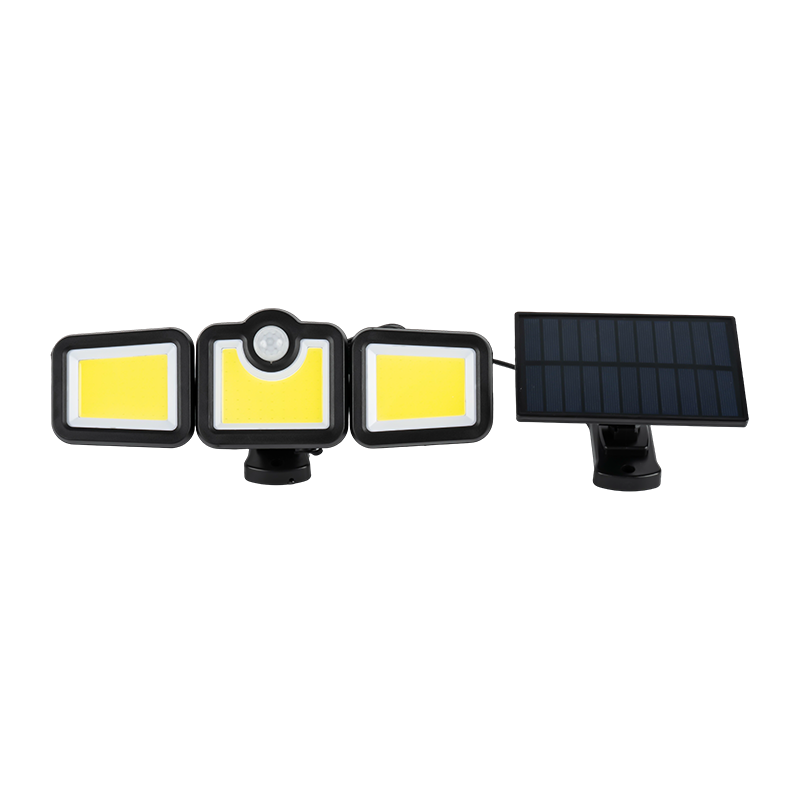

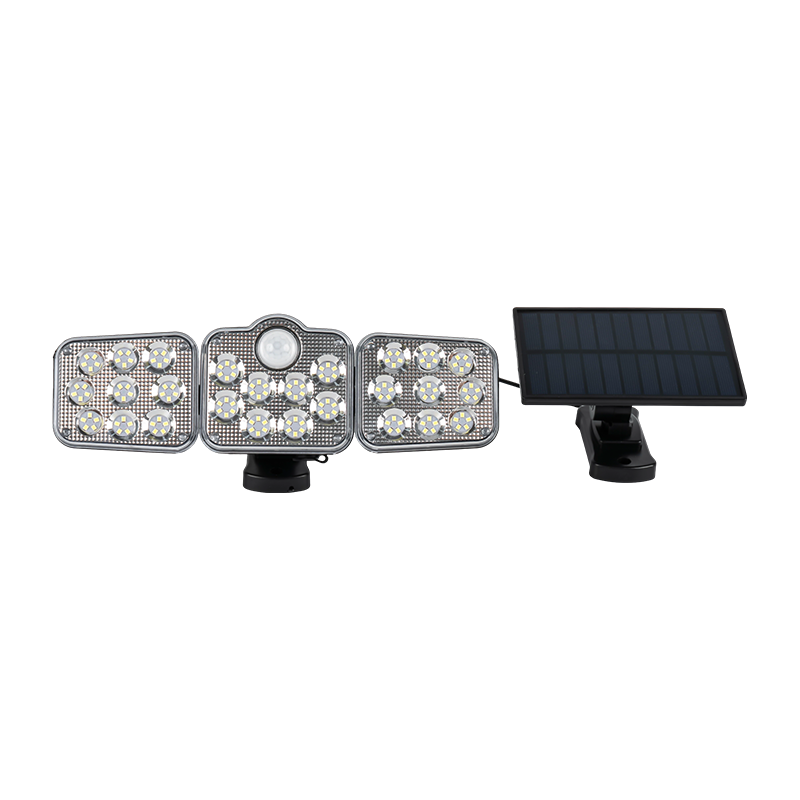

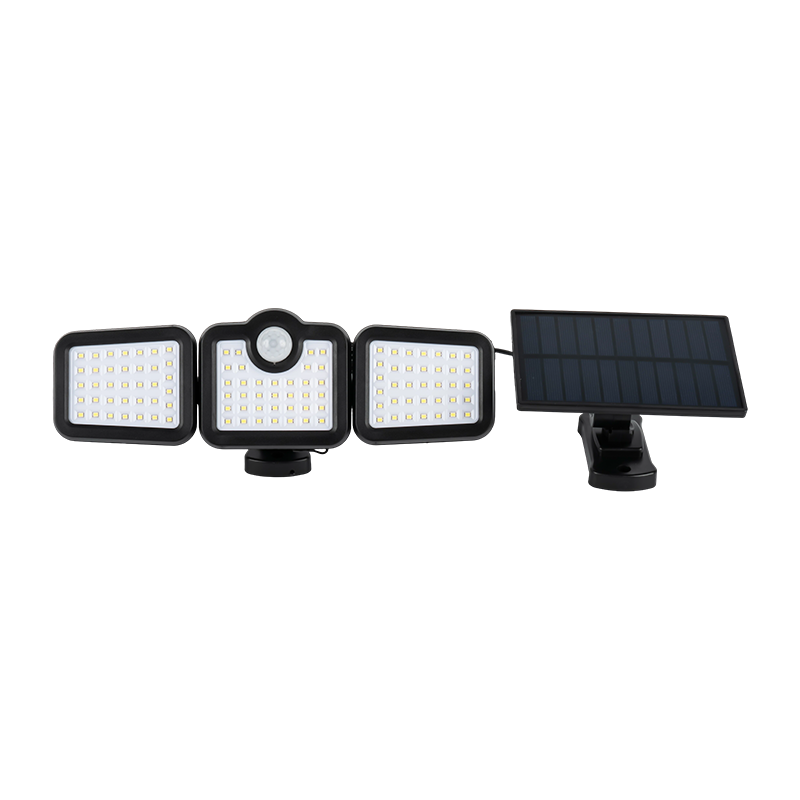

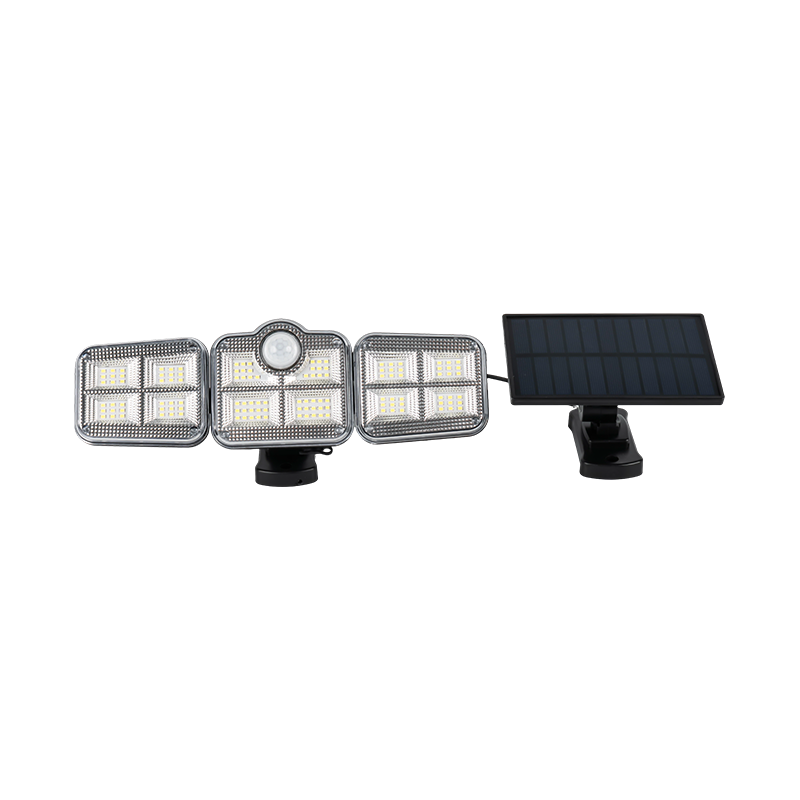

A-Version: Separated Solar Panel + 4.6m Cable — The A-version uses a separated solar panel with a 4.6m charging cable, allowing flexible installation and extended charging.
Indoor & Outdoor Use — The lamp body can be installed indoors or outdoors, making it suitable for walls, gardens, yards, corridors and more.

Contact UsNinghai Lingfei Electric Appliance Co., Ltd. DescriptionNinghai Lingfei Electric Appliance Co., Ltd.
PREV：SSL1626/1727/1828/1929 4-Head Solar Wall LightNEXT：SSL182/3218 Series 3-Head Solar Motion Sensor Light
Description
1. Solar Panel
Material Polycrystalline silicon epoxy panel
Size 137*80
Voltage 5.5V
Current 280mA
Power 1.5W
2.
2.1)
Product Name 182LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Base, remote control, screw pack, manual, ground stake
Sensing distance 3-5 m
Sensing angle 120°
2.2)
Product Name 321LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Base, remote control, screw pack, manual, ground stake
2.3)
Product Name 182A Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
2.4)
Product Name 321A LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
3. Function Description
1) Human body sensing mode (at night, bright when someone approaches; light turns off about 20s after the person leaves)
2) Human body sensing + dim mode (at night, bright when someone approaches; dims about 20s after the person leaves)
4) Constant dim mode (at night, stays dimly lit continuously; no sensing when someone approaches)
Parameter

Product Description
This 3-head solar motion sensor wall light provides reliable outdoor wall lighting without complex wiring. It uses a high-efficiency polycrystalline solar panel to charge the built-in 2×1200mAh 18650 batteries during the day, then automatically activates at night when motion is detected.
The three LED light heads offer wider coverage than traditional single-head lights, making it ideal for front doors, gates, garage walls, garden fences, yards and pathways. With 3 adjustable working modes and a remote control, users can easily switch between security, energy-saving and ambient lighting modes.
The standard version is a compact solar wall light, while the A-version adopts a separated solar panel design with a 4.6m charging cable. This allows the lamp body to be installed in a convenient indoor or outdoor location, while the solar panel is placed in a sunny area for better charging efficiency

Three Working Modes
Mode 1 — Motion Only: Behavior: Full brightness when motion is detected at night; turns off about 20 seconds after motion stops; Best For: Security entrances, driveways, gates
Mode 2 — Motion + Dim: Behavior: Stays dim at night; switches to full brightness when motion is detected; returns to dim about 20 seconds later; Best For: Pathways, yards, perimeter lighting
Mode 3 — Constant Dim: Behavior: Remains softly lit all night; motion sensor is disabled; Best For: Ambient lighting, corridors, patio areas

Model Lineup
JD-2656: LED Count: 108 LED; Brightness: 420 lm; Positioning: Entry model for small walls and gates
JD-2757: LED Count: 122 LED; Brightness: 450 lm; Positioning: Standard model for doorways and pathways
JD-2858: LED Count: 138 LED; Brightness: 480 lm; Positioning: Brightest model for large walls and yards
JD-2959: LED Count: 171 LED; Brightness: 450 lm; Positioning: High LED count for wider light distribution
A-Version: Each model has a corresponding A-version with the same lighting performance. The A-version is equipped with a separated solar panel and a 4.6m charging cable, which supports extended charging and more flexible installation. The lamp body can be used indoors or outdoors.

Specifications

Item Specification
Solar Panel Polycrystalline laminated, 137×80mm, 5.5V / 280mA / 1.5W
Sensor PIR, detection distance 3–5m, angle 120°
Battery 2×1200mAh 18650 rechargeable
LED / Brightness 108–171 LED / 420–480 lm
Housing ABS/PC
Product Size 28×10×11 cm
A-Version Size 28×10×10.5 cm
Accessories Remote control, screw pack, manual
A-Version Accessories Remote control, screw pack, manual, separated solar panel, 4.6m charging cable
Box 190×125×102 mm
A-Version Box 190×130×103 mm
Packing 40 pcs/ctn, 21 kg
A-Version Packing 40 pcs/ctn, 24 kg



Application Scenarios
Front door, gate, garage wall, garden fence, yard, pathway, corridor, balcony, patio, courtyard, indoor wall, outdoor wall.

FAQ
Q: What is the difference between the standard version and the A-version?
A: The standard version is an integrated solar wall light. The A-version is a separated solar panel design with a 4.6m charging cable, which supports extended charging and more flexible placement.
Q: Can the A-version lamp body be used indoors?
A: Yes. The lamp body can be installed indoors or outdoors, while the separated solar panel is placed in a sunny location.
Q: How does the 4.6m cable help?
A: The 4.6m charging cable allows the solar panel to be installed in a sunny area while the lamp body is mounted in a more convenient indoor or outdoor position.
Q: Does the A-version have the same brightness as the standard version?
A: Yes. The A-version has the same LED count, brightness and working modes as the corresponding standard model.
