Product Description
Light up your outdoor space with zero electricity and zero wiring. Our Solar Motion Sensor Light is engineered for homeowners who want security, convenience, and energy efficiency in one sleek package.

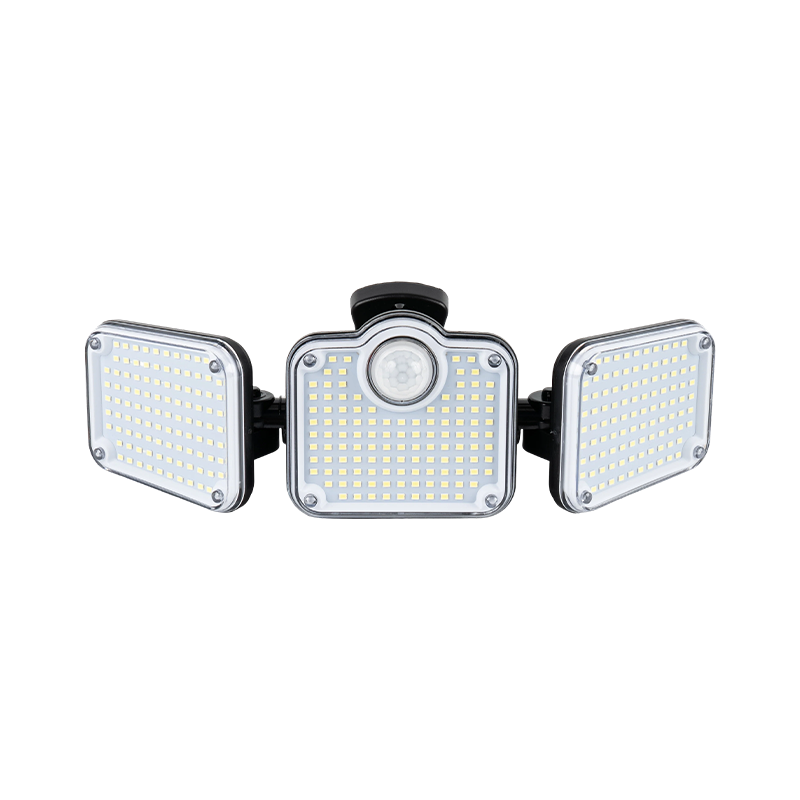

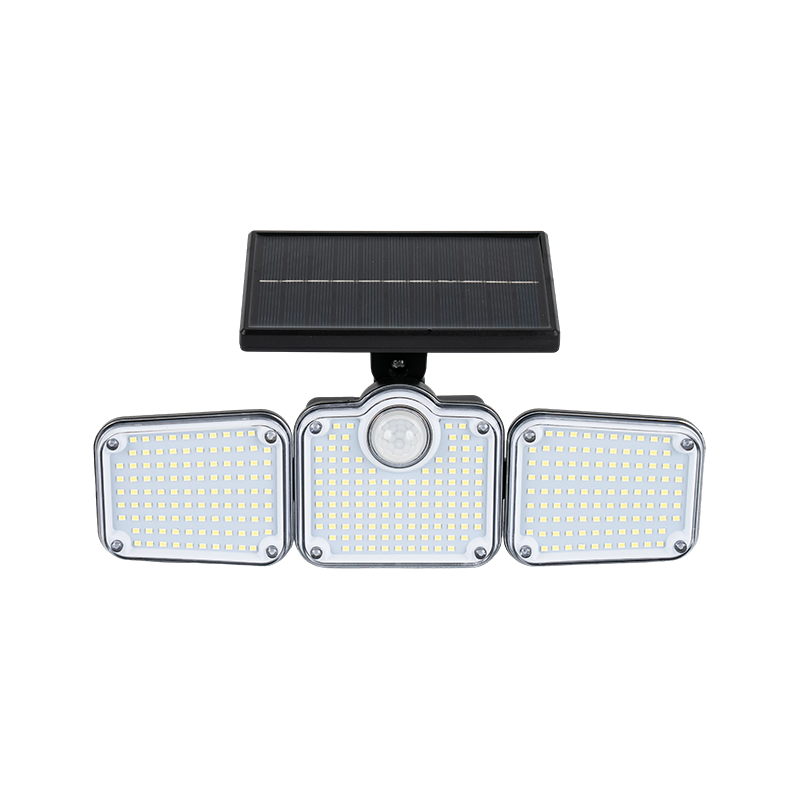

Equipped with three adjustable LED panels, this light delivers wide-angle illumination that covers driveways, gardens, and yard perimeters far beyond what single-head lights can achieve. The built-in PIR motion sensor detects human movement and triggers full brightness automatically at night — giving you peace of mind and deterring unwanted visitors.
Choose from three intelligent working modes to match your exact needs: pure motion activation for security alerts, motion + dim standby for round-the-clock ambient lighting, or constant dim mode for soft pathway illumination all night long.
With an all-in-one design (wall mount & ground stake 2-in-1) and a separated solar panel version (5m cable for shaded locations), installation takes minutes — no electrician, no wiring, no hassle. Just mount it, let the sun charge it, and enjoy smart outdoor lighting every night.
Three Working Modes
Mode 1: Motion Sensor Only; Behavior: Night: full brightness when motion detected → auto off ~20s after person leaves; Best For: Security alert, driveway, garage side
Mode 2: Motion + Dim Standby; Behavior: Night: stays dim → full brightness when motion detected → back to dim ~20s after person leaves; Best For: Pathway, garden, yard perimeter (balance safety + power)
Mode 3: Constant Dim Light; Behavior: Night: soft dim light all night, motion detection disabled; Best For: Ambient lighting, decorative pathway, patio

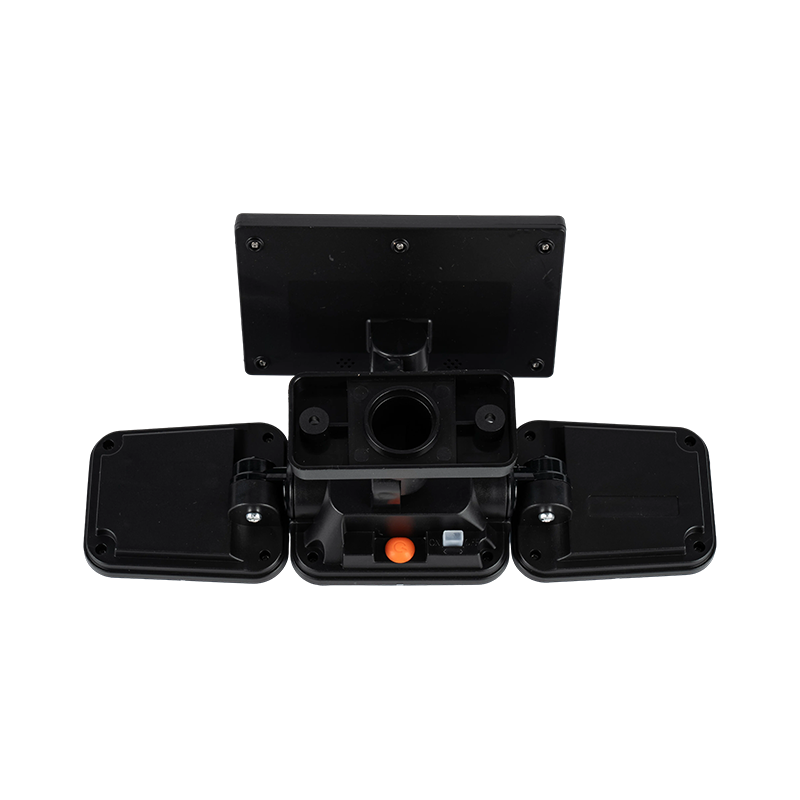

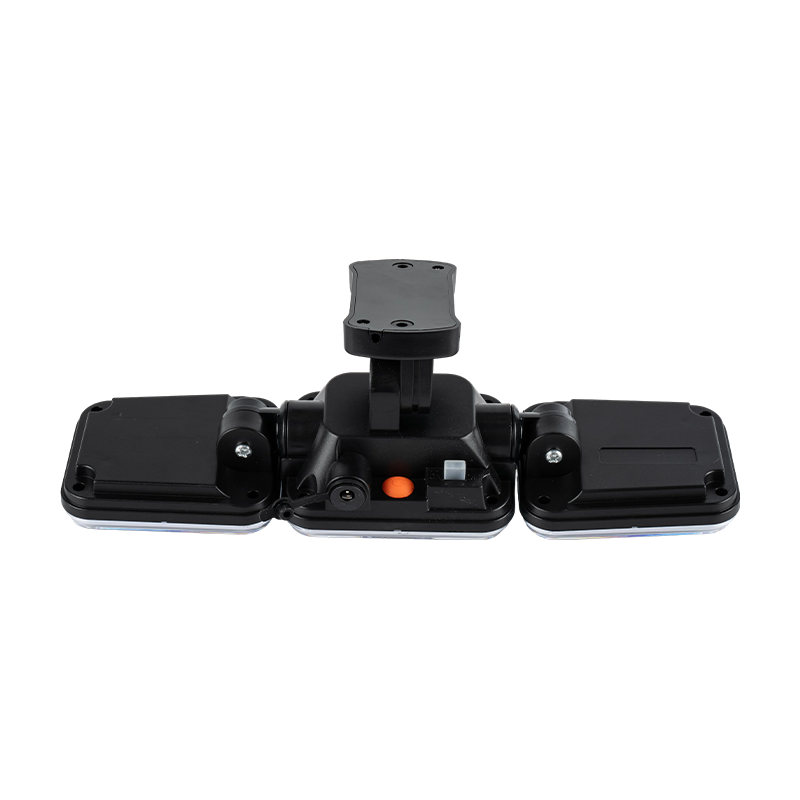

How to switch modes: Press the mode button on the back of the lamp. Each press cycles through Mode 1 → Mode 2 → Mode 3.
Two Styles — Choose Yours

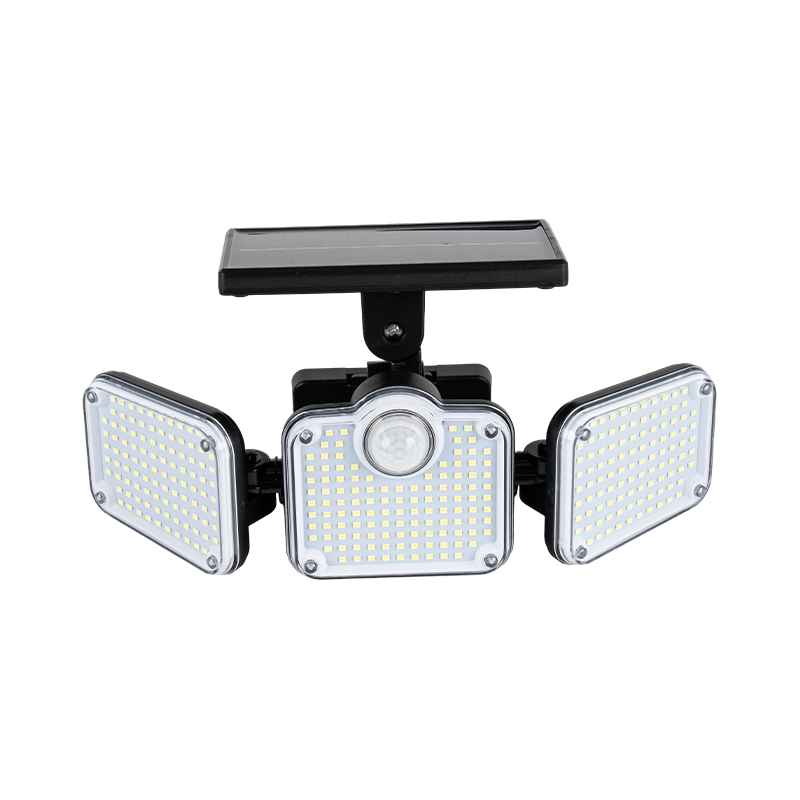

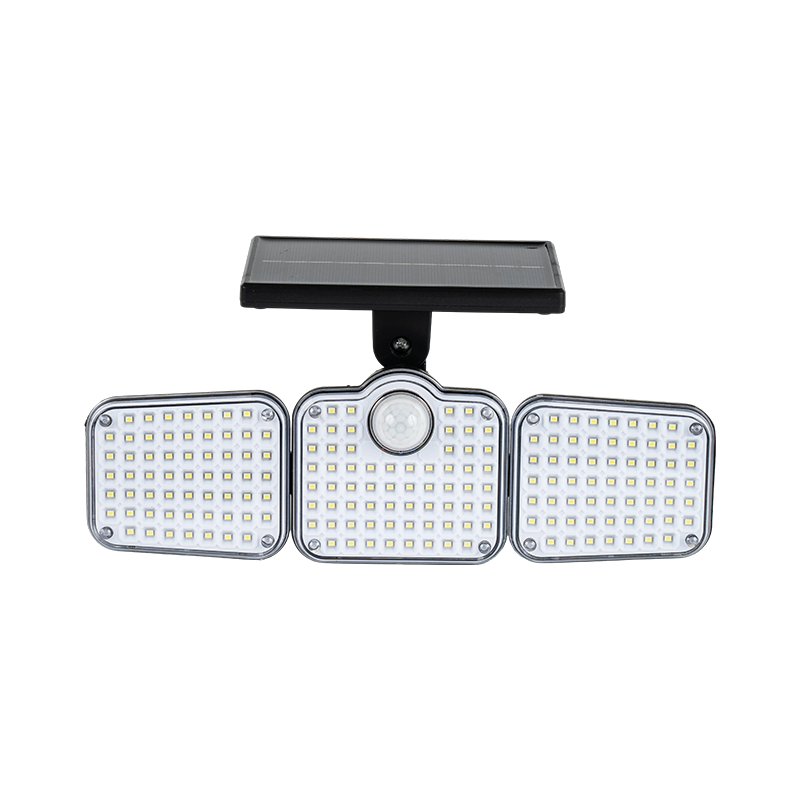

i.) All-in-One Solar Light
Solar panel and lamp body are integrated into one unit.
Key Feature: 2-in-1 Installation
Wall Mount — Screw onto house walls, fences, garages, pillars
Ground Stake — Insert directly into lawn, garden soil, flower beds
Best for: Locations with direct sunlight at the mounting spot
No extra cable, clean and compact

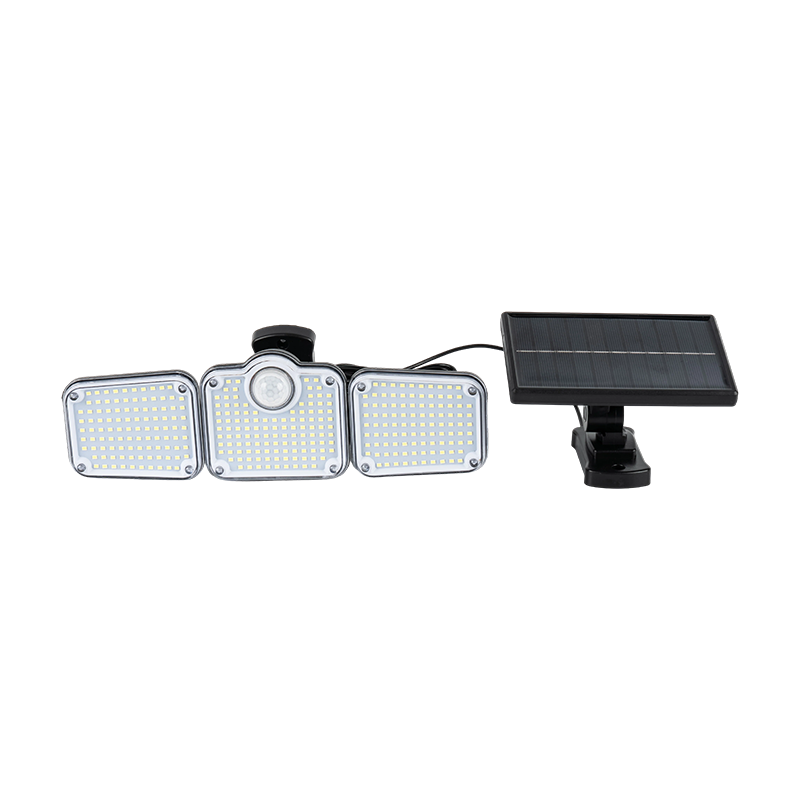

ii.) Separated Solar Panel Light

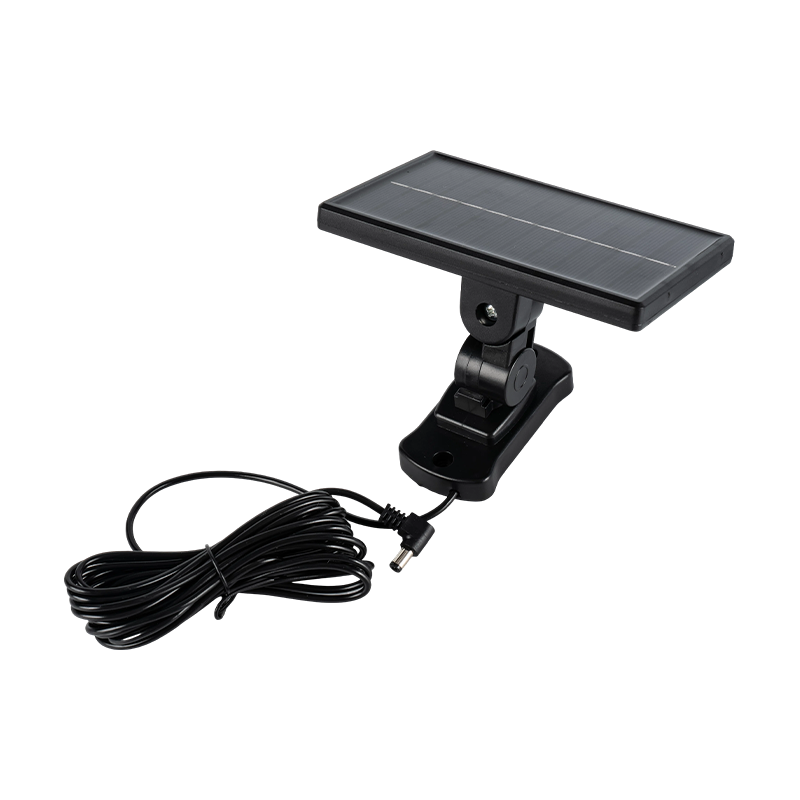

Solar panel connects to the lamp body via a 5-meter (16.4ft) cable.
Key Feature: Place Panel in Sun, Light in Shade
Mount the lamp under eaves, trees, or shaded walkways
Place the solar panel on the roof, pole, or any sunny spot up to 5m away
Solves the #1 problem of solar lights: insufficient sunlight at the lamp location
Best for: Covered patios, shaded pathways, garage interiors, under-deck areas
5m cable gives flexible placement options
Two Brightness Options
JD-182/182A: Brightness: 310 Lumens; LED Beads: Standard; Best For: Small yards, pathways, flower beds, accent lighting
JD-3218/3218A: Brightness: 500 Lumens; LED Beads: High-output; Best For: Large driveways, yard perimeters, garage areas, security-focused locations
*Both models support all 3 working modes and both style options (All-in-One / Separated).
Specifications
| Item |
Specification |
| Power Source |
Solar energy (built-in rechargeable battery) |
| Charging Time |
6-8 hours under direct sunlight |
| Working Time |
Up to 8-12 hours on a full charge (varies by mode) |
| LED Type |
High-brightness SMD LED |
| Brightness |
JD-182: 310lm / JD-3218: 500lm |
| Sensor Type |
PIR (Passive Infrared) human motion sensor |
| Detection Angle |
120° |
| Detection Distance |
3-5 meters (10-16ft) |
| Lighting Angle |
270° (3 adjustable heads) |
| Delay Time |
~20 seconds after motion stops |
| Working Modes |
3 modes (Motion Only / Motion+Dim / Constant Dim) |
| Waterproof Rating |
IP65 |
| Material |
ABS + PC (heat-resistant, UV-stabilized) |
| All-in-One Version |
Wall mount + ground stake 2-in-1 |
| Separated Version |
5m (16.4ft) extension cable |
| Operating Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Package Includes |
1× Solar Light, 1× Ground Stake, 1× Mounting Kit, 1× User Manual |
Installation Guide
Step 1 — Choose Your Location
Pick a spot with adequate sunlight for the solar panel (at least 6 hours of direct sun per day). Avoid shaded areas under trees or eaves for the all-in-one version.
Step 2 — Select Installation Method
Wall Mount: Use the included screws and wall plugs to fix the bracket onto the wall. Slide the light onto the bracket.
Ground Stake: Attach the ground spike to the bottom of the light. Insert firmly into soft soil or lawn.
Separated Version: Mount the lamp at the desired location, then run the 5m cable to the solar panel and place it in a sunny spot.

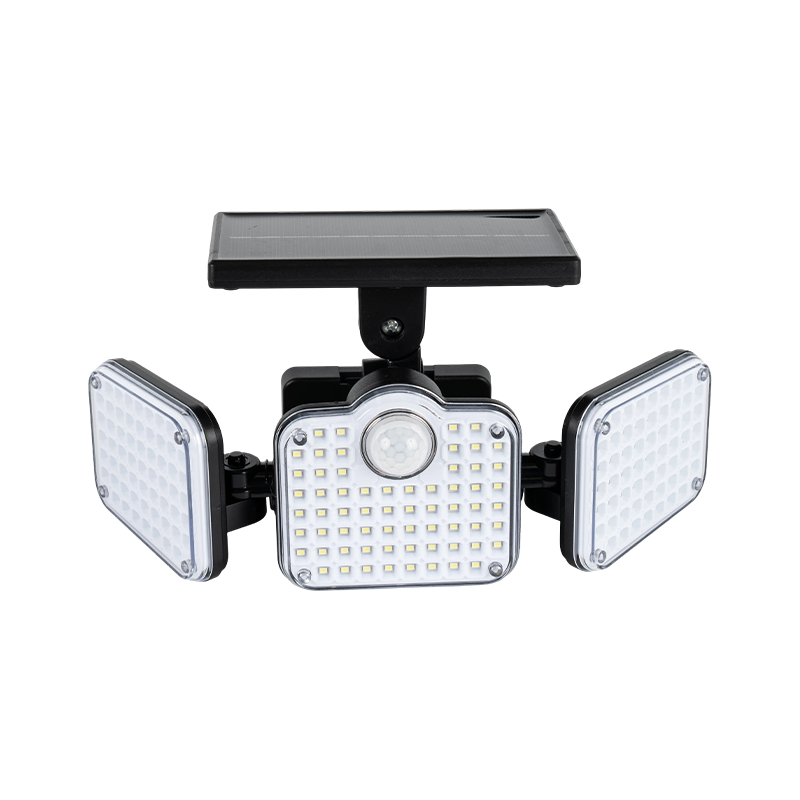

Step 3 — Adjust the Light Heads
Fold and angle the three LED panels to cover the area you want to illuminate. The center panel houses the PIR sensor — angle it toward the detection zone.
Step 4 — Select Working Mode & Test
Press the mode button to choose your preferred mode. Cover the solar panel to simulate nighttime, then walk in front of the sensor to test activation.
First-time use: Charge the light under direct sunlight for 8 hours before first use to ensure full battery capacity.
