Solar Sensor Lamp

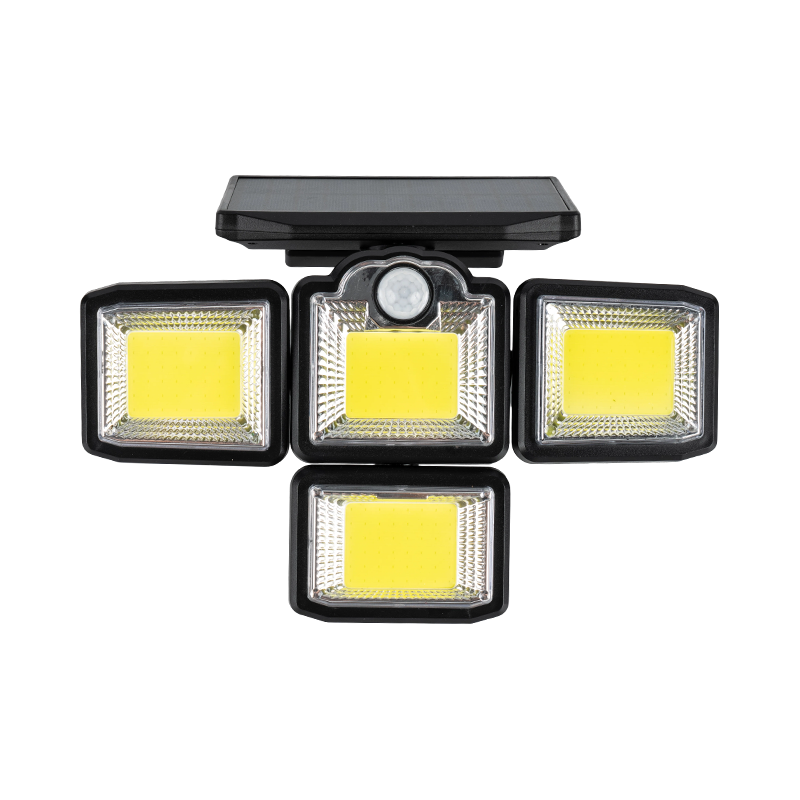

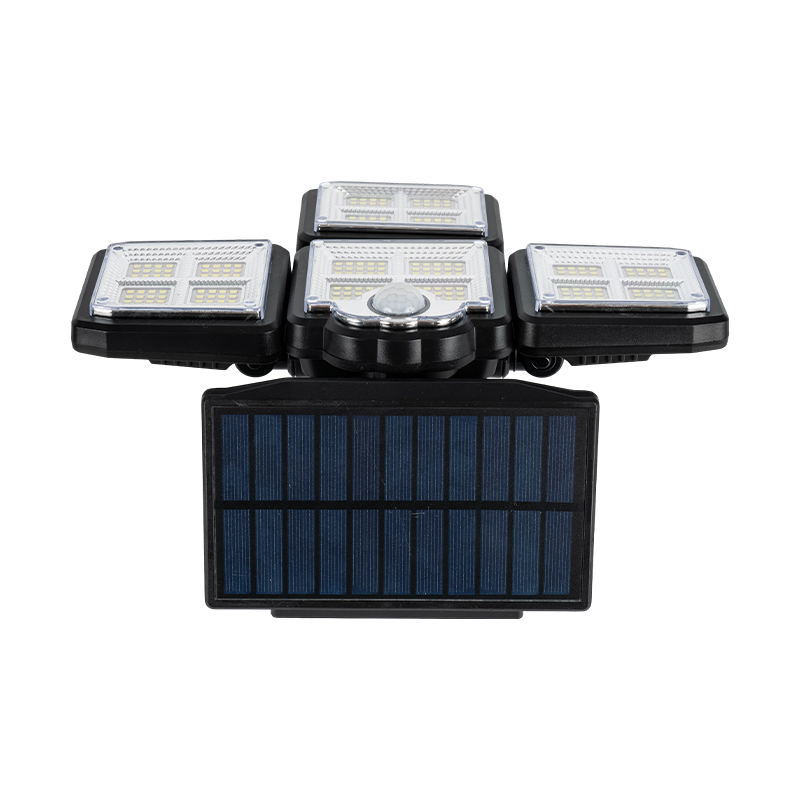

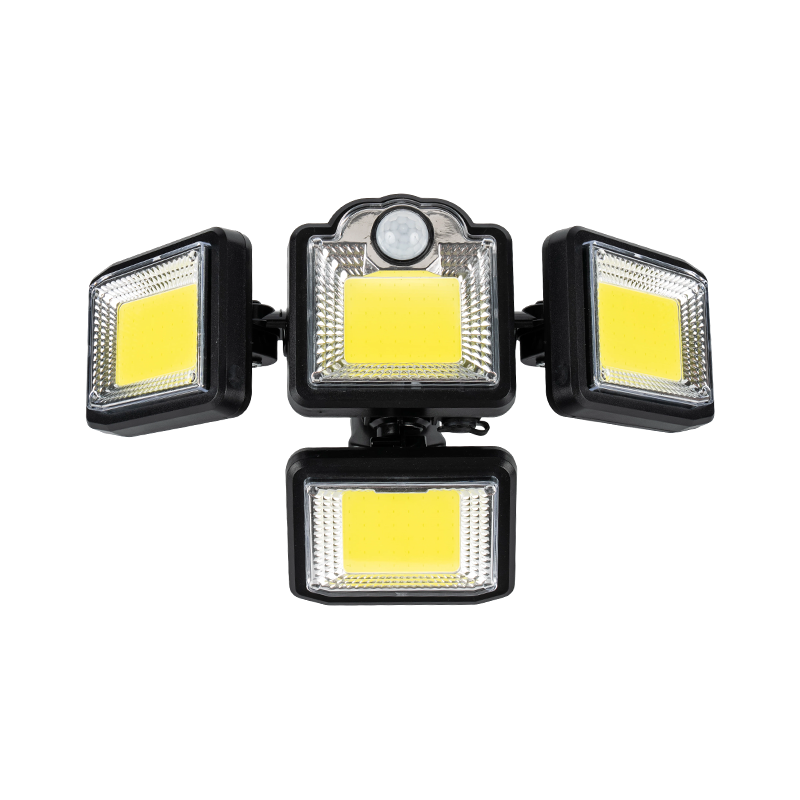

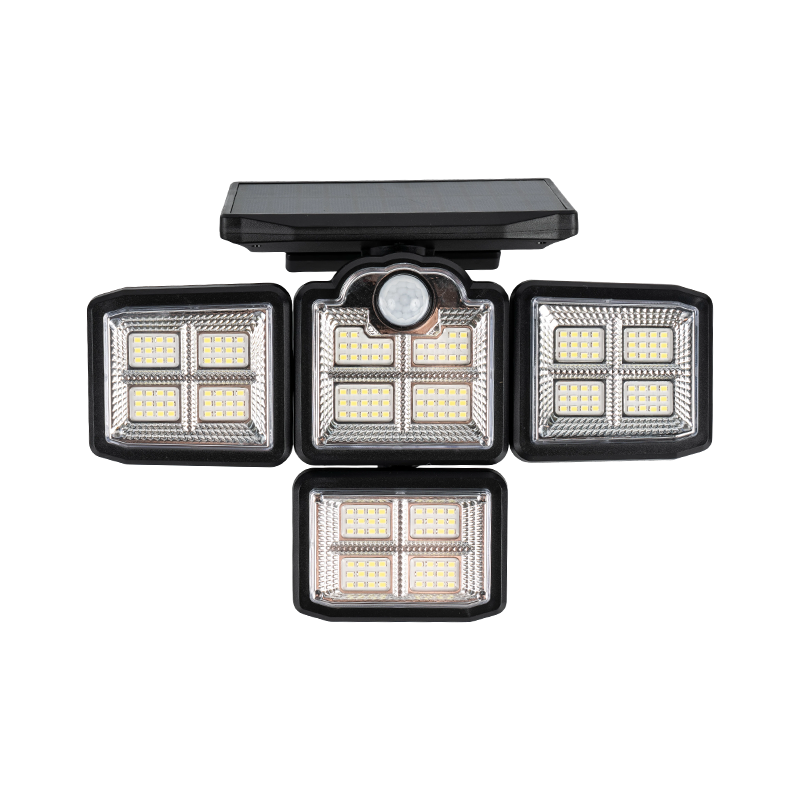

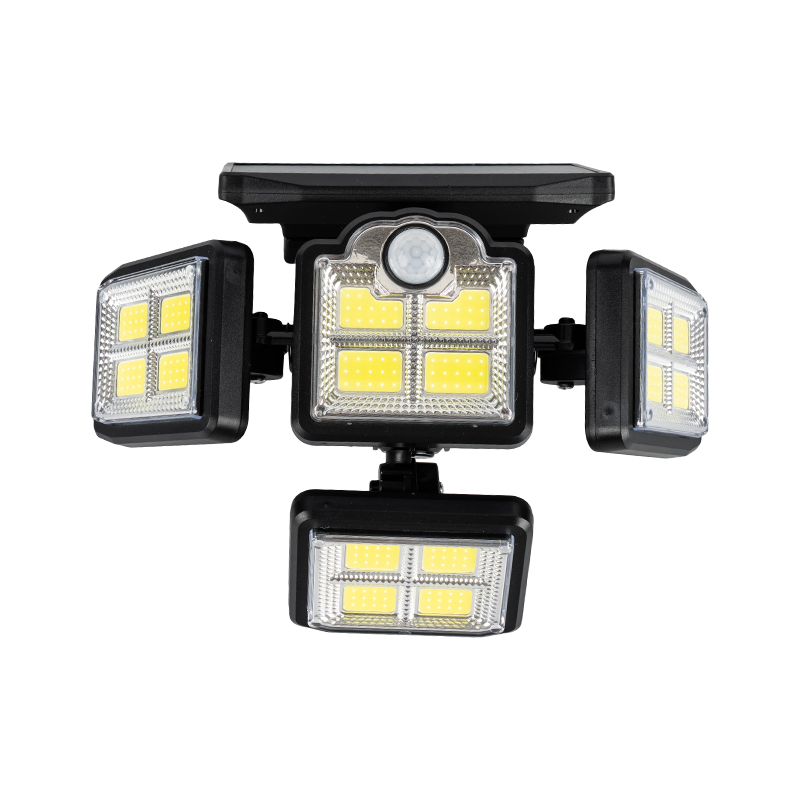

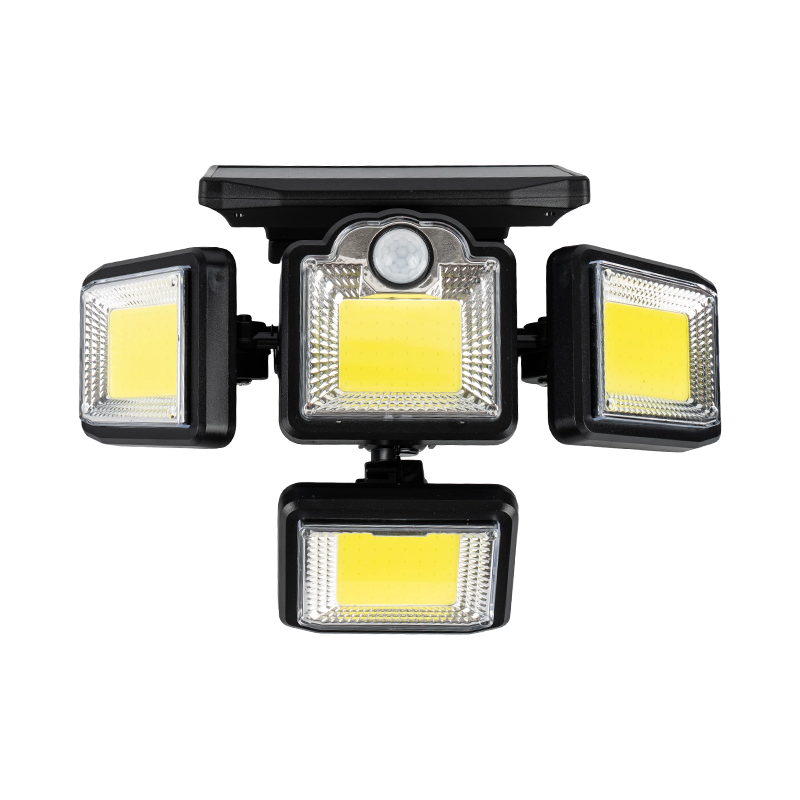

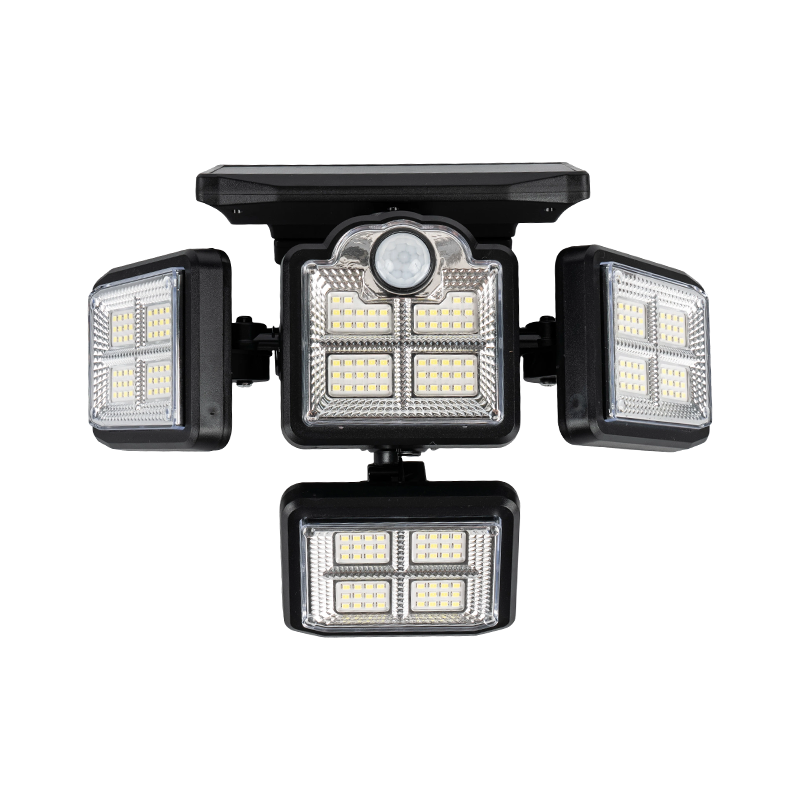

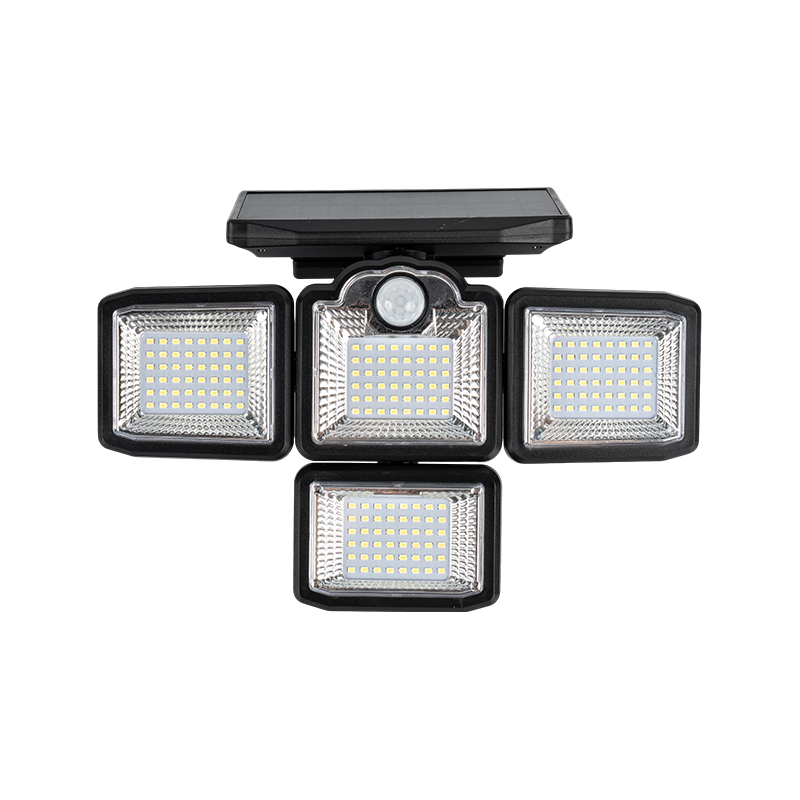

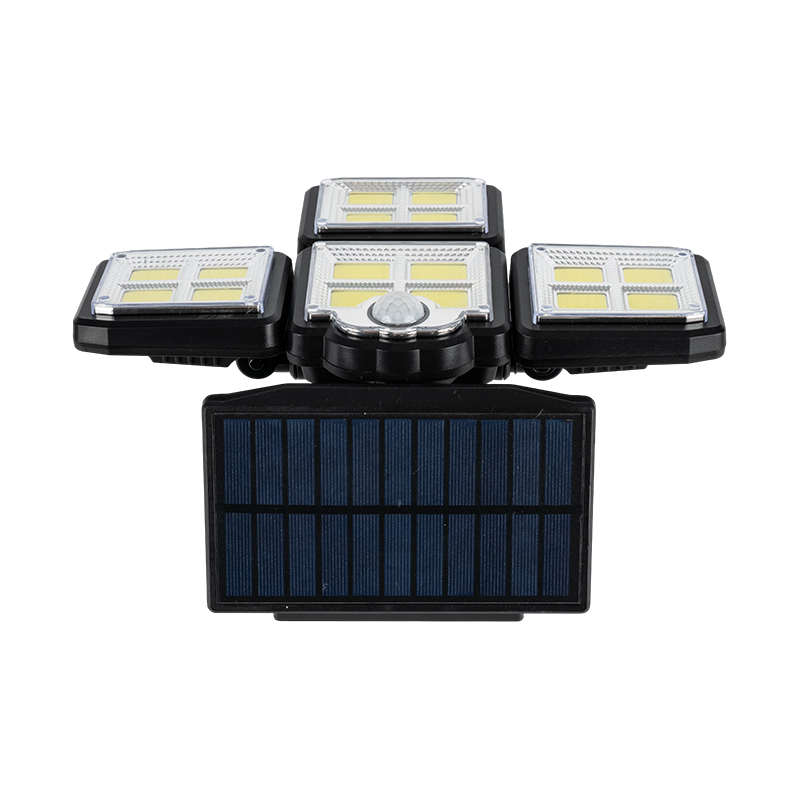

SSL1626/1727/1828/1929 4-Head Solar Wall Light

Product Overview

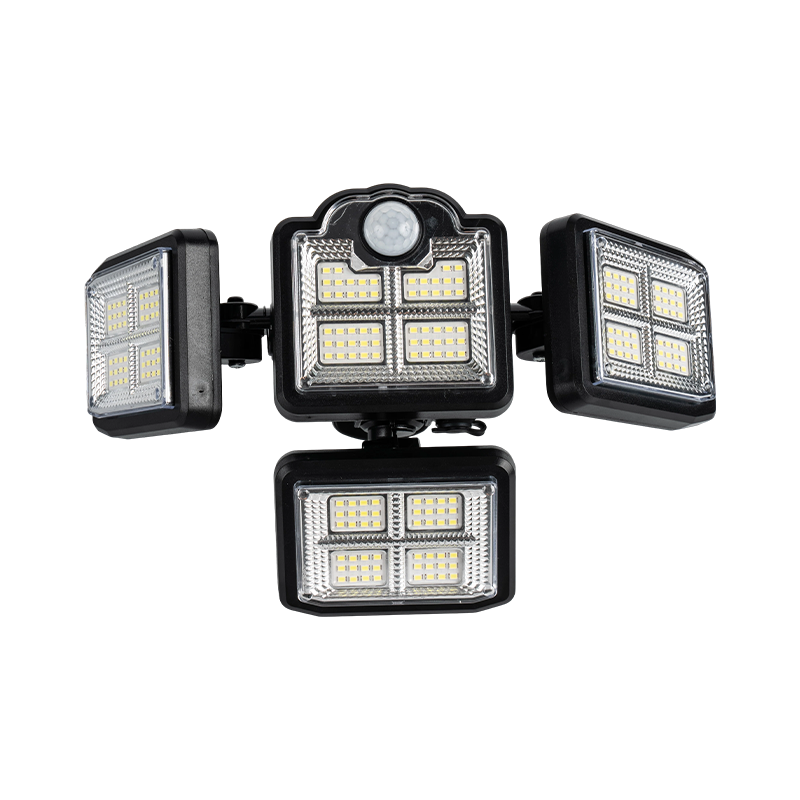

This heavy-duty 4-head solar wall light outputs powerful 700lm illumination with LED or COB light sources. Equipped with upgraded 1.8W large polycrystalline solar panel for faster solar charging. Reliable PIR human motion sensor, 3 functional modes, remote control and bottom stand base for versatile placement.

Contact UsNinghai Lingfei Electric Appliance Co., Ltd. DescriptionNinghai Lingfei Electric Appliance Co., Ltd.
PREV：SSL2101/2102/2108/2109 2-Head Solar Wall LightNEXT：SSL2656/2757/2858/2959 3-Head Solar Wall Light
Description
1. Solar Panel
Material Polycrystalline silicon epoxy panel
Size 137*80
Voltage 5.5V
Current 280mA
Power 1.5W
2.
2.1)
Product Name 182LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Base, remote control, screw pack, manual, ground stake
Sensing distance 3-5 m
Sensing angle 120°
2.2)
Product Name 321LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Base, remote control, screw pack, manual, ground stake
2.3)
Product Name 182A Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
2.4)
Product Name 321A LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
3. Function Description
1) Human body sensing mode (at night, bright when someone approaches; light turns off about 20s after the person leaves)
2) Human body sensing + dim mode (at night, bright when someone approaches; dims about 20s after the person leaves)
5) Constant dim mode (at night, stays dimly lit continuously; no sensing when someone approaches)
Parameter

Two Options: Integrated vs Separated A-Version

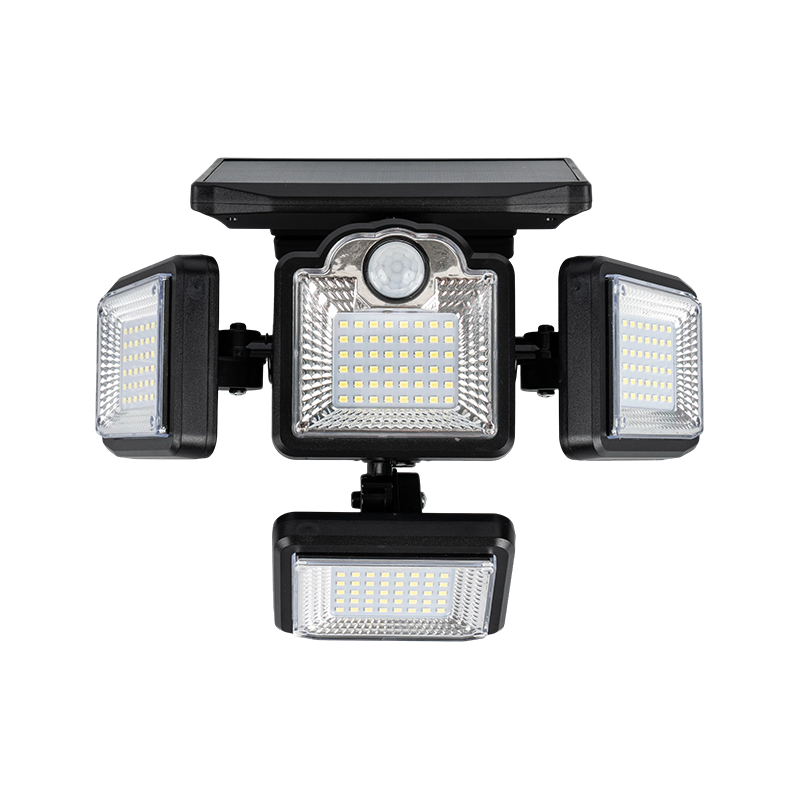

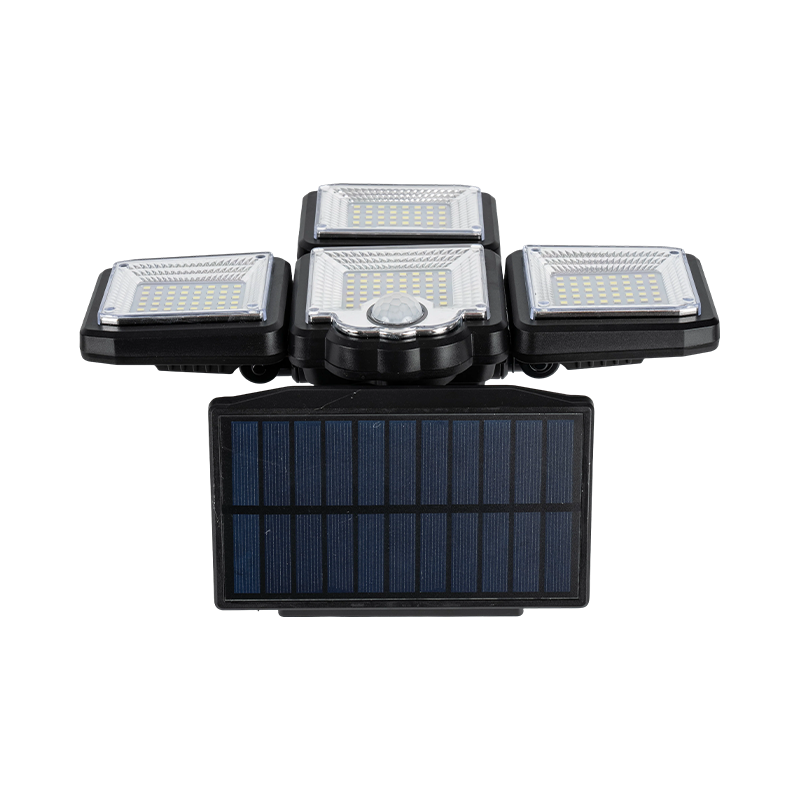

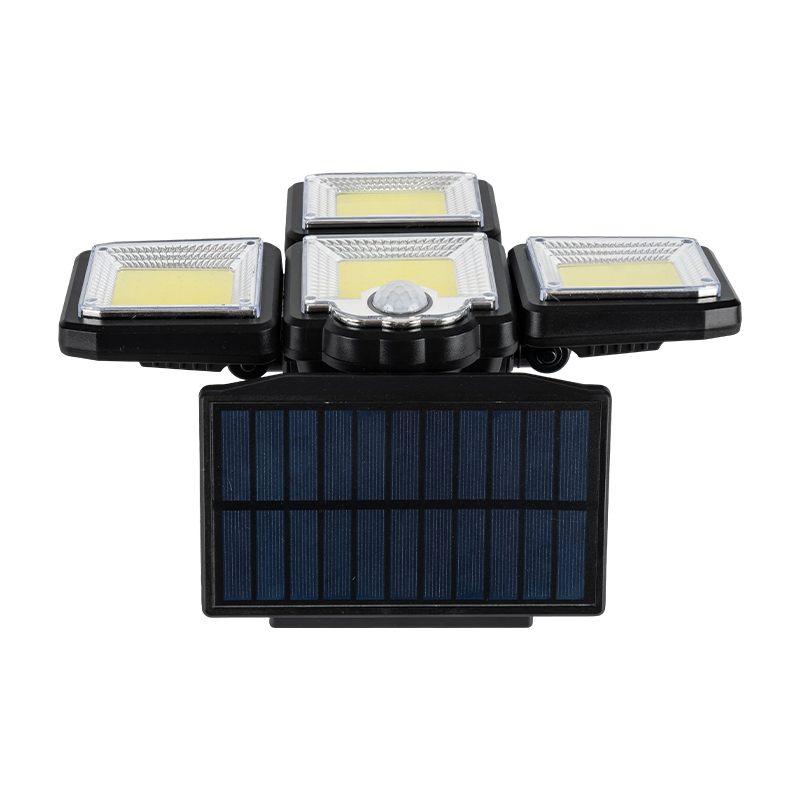

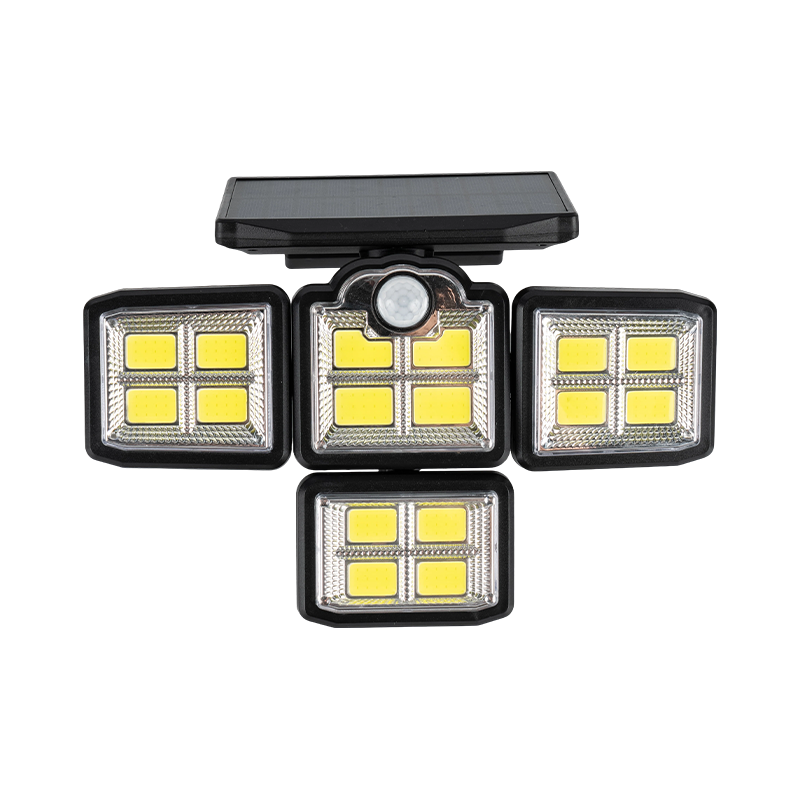

Standard Version: All-in-one integrated solar panel, best for outdoor walls with good direct sunlight.

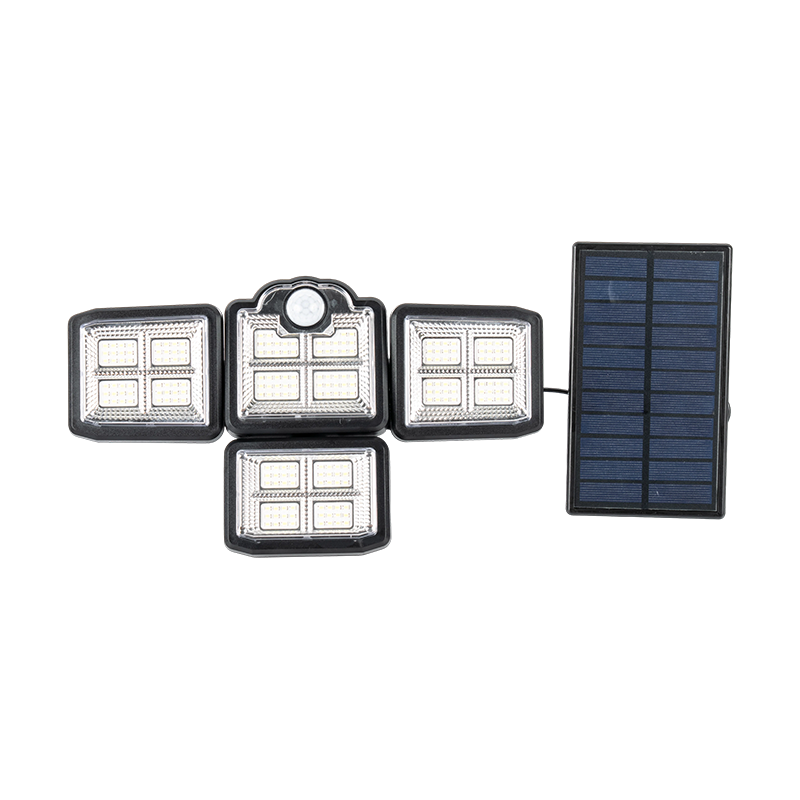

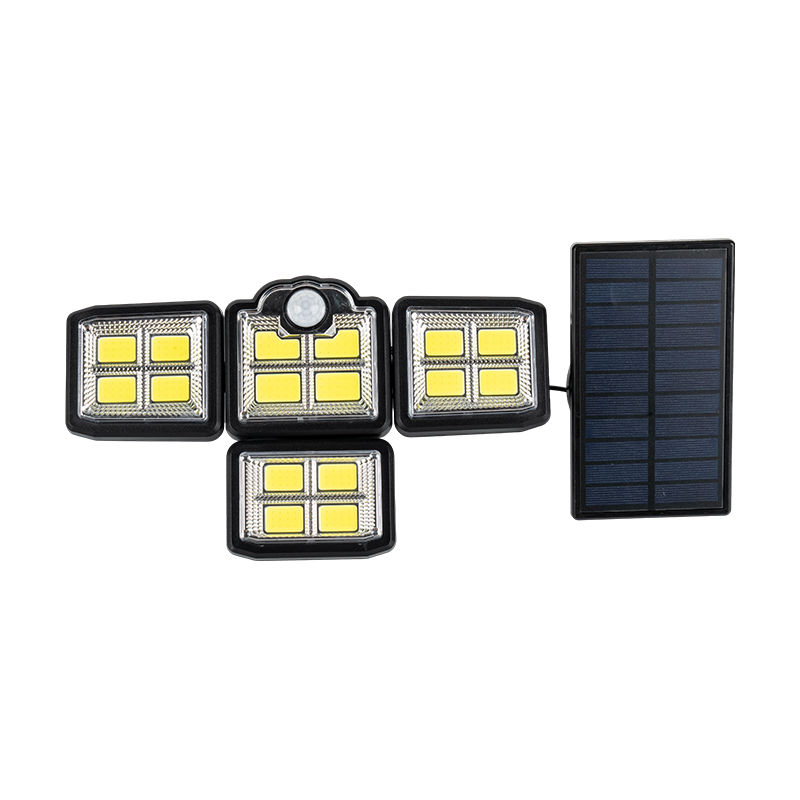

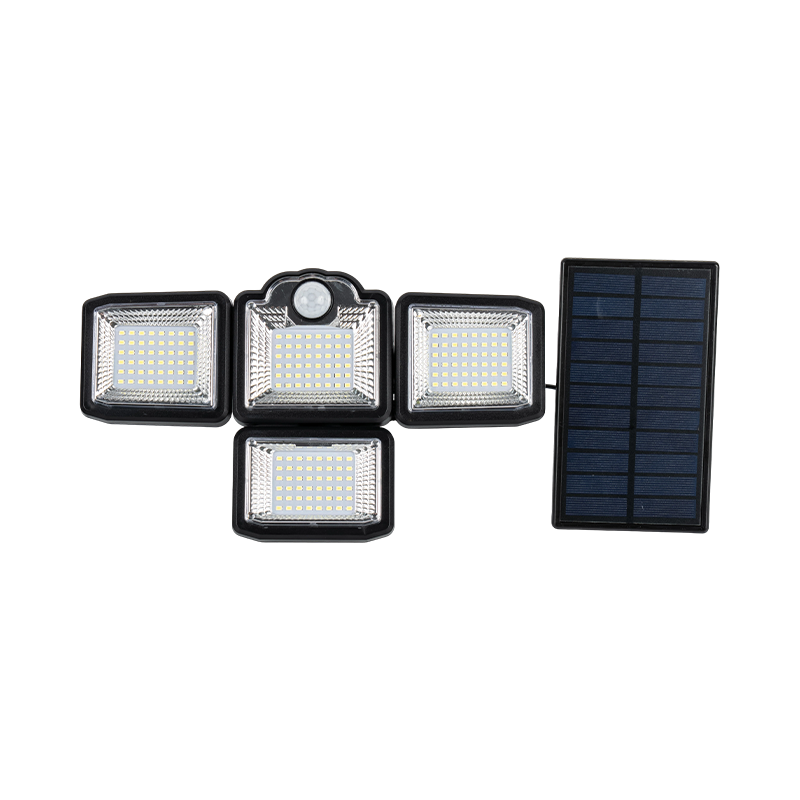

A-Version: Separated solar panel paired with 4.6m long charging cable. You can position solar panel in sunny spots, and mount the lamp body either indoors or outdoors. Solves the problem of insufficient sunlight at lamp installation position. Lighting parameters and functions are the same as standard models.

Smart Working Modes
1. Motion-Only Mode: Full brightness triggered by human motion, turns off in ~20 seconds after movement stops. Perfect for driveway and perimeter security.
2. Motion + Dim Standby: Low dim light stays on overnight; switches to full brightness when people approach, reverts to dim after ~20 seconds. Suited for large yards and parking zones.
3. Constant Dim Mode: Continuous soft dim light all night, motion sensor turned off. For garden ambient lighting and covered patios.

Core Advantages
Upgraded 1.8W solar panel for higher charging efficiency
192-198 LED / COB beads, 700lm high lumen for large-area lighting

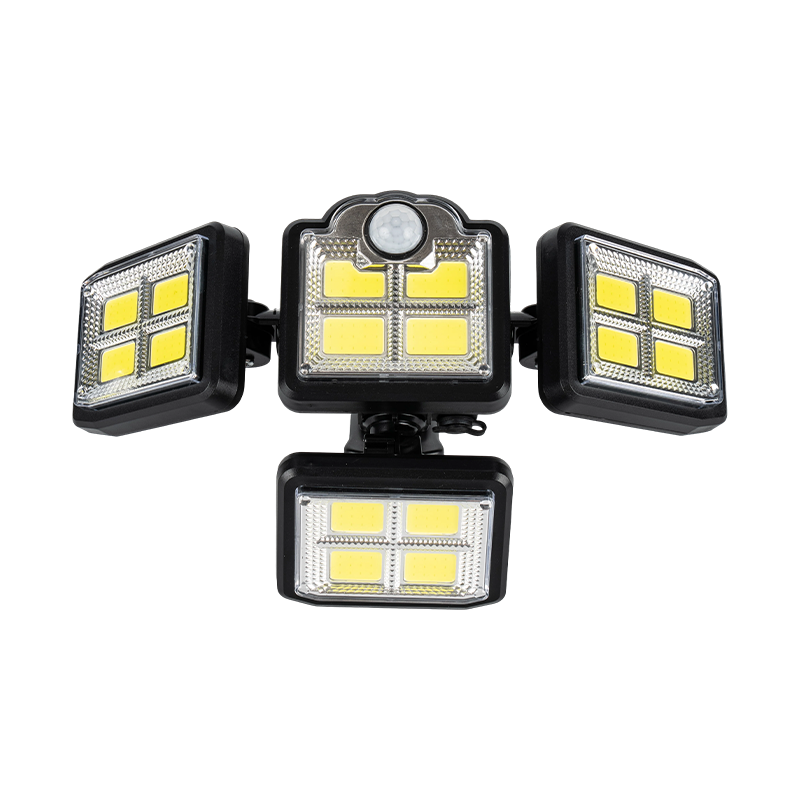

COB variant delivers smooth, glare-free uniform light
Remote control plus bottom stand for wall-mount or flat-surface placement
Dual 1200mAh 18650 rechargeable batteries for long runtime
Robust ABS-PC construction for year-round outdoor conditions

Applications
Driveways, garages, large-size yard perimeters, main entrances, parking areas, farm exteriors, courtyards, covered porches, indoor utility rooms (A-version highly recommended for shaded positions).

Quick Spec Snapshot

Item Specification
Solar Panel 155×85mm; 5.5V; 320mA; 1.8W
Sensor 3-5m detection distance, 120° angle
Battery 2×1200mAh 18650
Brightness 700lm
Accessories Remote, screw set, manual, stand base; A-version adds separated solar panel & 4.6m cable
