Solar Sensor Lamp

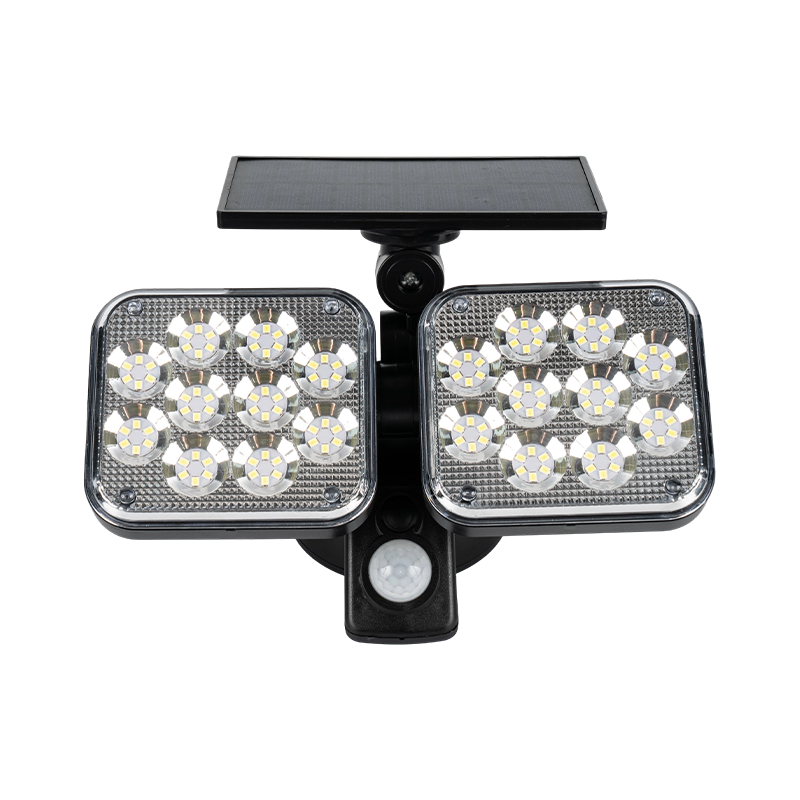

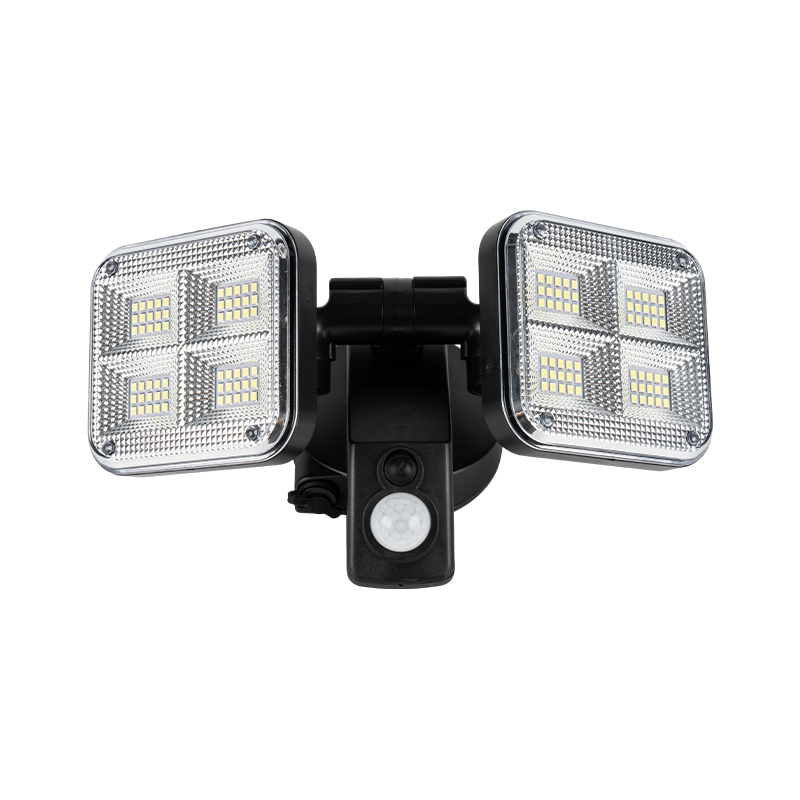

SSL2101/2102/2108/2109 2-Head Solar Wall Light

Key Features
Solar Powered, Zero Wiring — 1.5W polycrystalline solar panel charges automatically in daylight. No electricity bill, no electrician needed.
Smart PIR Motion Sensor — Detects human movement at 3–5m within a 120° angle; lights up automatically at night.
2-Head LED Design — 100–120 high-brightness LEDs deliver wide, even wall illumination in a compact body.
3 Working Modes — Motion Only / Motion + Dim / Constant Dim, one button to switch.
Rechargeable 18650 Battery — 2×1200mAh built-in, solar-recharged day after day, no battery replacement.
Separated Panel Option (2102 / 2109) — Equipped with a 4.6m charging cable and separated solar panel; supports extended charging, lamp body can be used indoors or outdoors.


Description
1. Solar Panel
Material Polycrystalline silicon epoxy panel
Size 137*80
Voltage 5.5V
Current 280mA
Power 1.5W
2.
2.1)
Product Name 182LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Base, remote control, screw pack, manual, ground stake
Sensing distance 3-5 m
Sensing angle 120°
2.2)
Product Name 321LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Base, remote control, screw pack, manual, ground stake
2.3)
Product Name 182A Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 182 LED
Lumens 310
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
2.4)
Product Name 321A LED Solar Wall Light
Material ABS/PS
Size 28.5*10.5*9
LED beads 321 LED
Lumens 500
Package contents Remote control, screw pack, manual, 4.6m charging cable
Sensing distance 3-5 m
Sensing angle 120°
3. Function Description
1) Human body sensing mode (at night, bright when someone approaches; light turns off about 20s after the person leaves)
2) Human body sensing + dim mode (at night, bright when someone approaches; dims about 20s after the person leaves)
6) Constant dim mode (at night, stays dimly lit continuously; no sensing when someone approaches)
Parameter

Product Description
Brighten your entrance and yard with clean solar energy — no wiring, no monthly electricity cost.
This 2-head solar motion sensor wall light pairs a high-efficiency polycrystalline solar panel with a smart PIR sensor and a compact dual-head LED array. During the day, the panel charges the built-in 2×1200mAh battery; at night, the light responds intelligently — full brightness the moment someone approaches, then off or back to dim about 20 seconds after they leave.
Four models cover two installation styles: 2101 and 2108 are integrated solar wall lights for spots with direct sunlight; 2102 and 2109 feature a separated solar panel with a 4.6m charging cable, so you can mount the lamp body indoors or outdoors while the panel sits in a sunny location — ideal for shaded porches, eaves, corridors, and indoor utility areas.
With 3 working modes, a durable ABS/PS housing, and a slim profile that fits tight wall spaces, it is a practical, low-maintenance lighting solution for any home.

Three Working Modes
Mode 1 · Motion Only: Behavior: Night: full brightness on motion → auto off ~20s after person leaves; Best For: Security, entrances, gates
Mode 2 · Motion + Dim: Behavior: Night: dim standby → full brightness on motion → dim again ~20s after; Best For: Pathways, yards, corridors
Mode 3 · Constant Dim: Behavior: Night: stays softly lit all night, motion sensor off; Best For: Ambient/decorative lighting, patios

Model Lineup

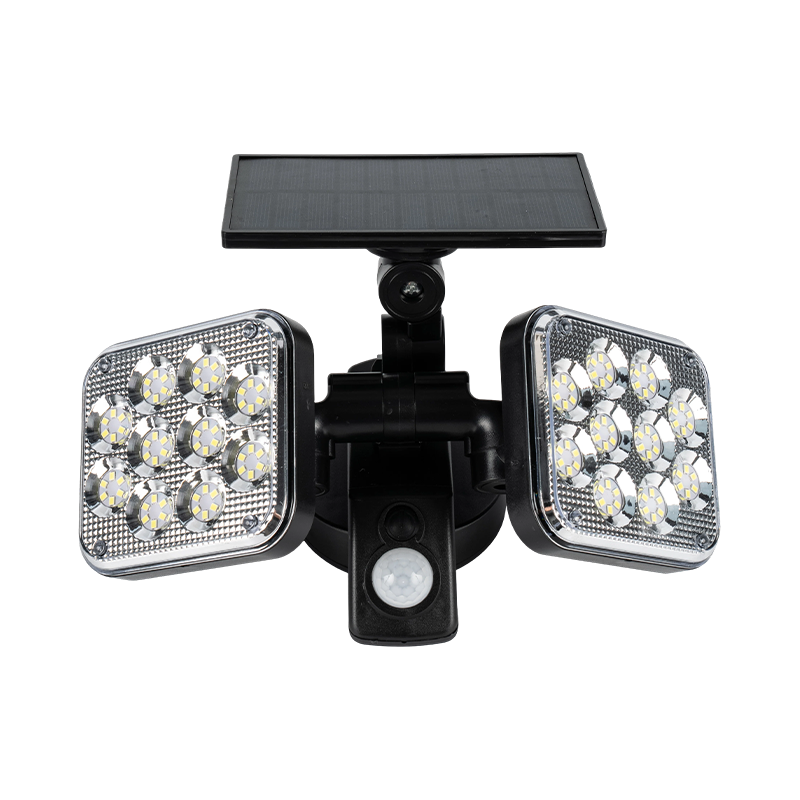

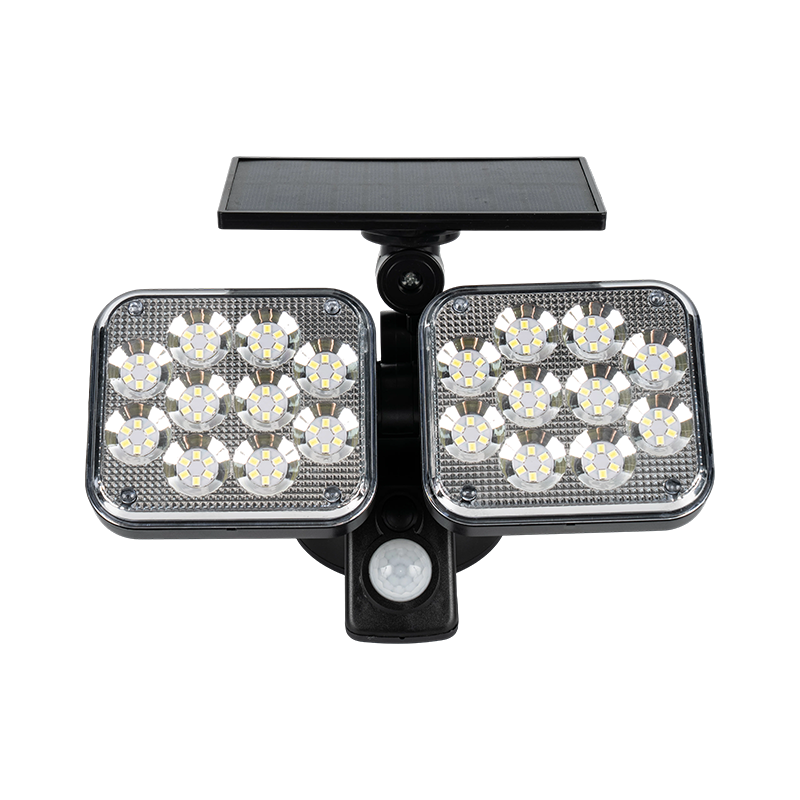

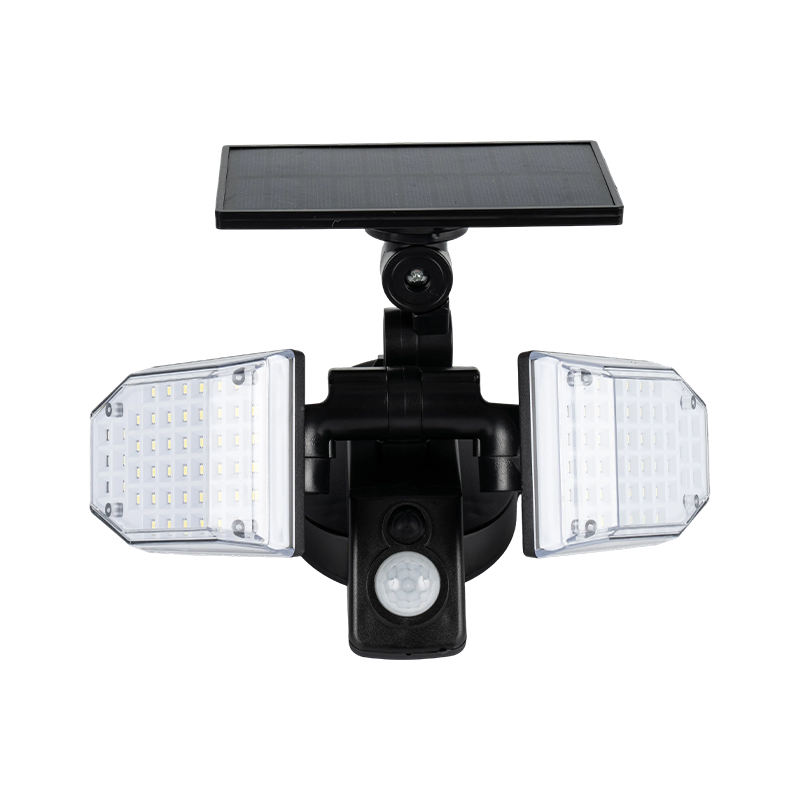

2101: Light Beads: 100 LED; Brightness: 380 lm; Version: Integrated; Best For: Small walls with direct sunlight

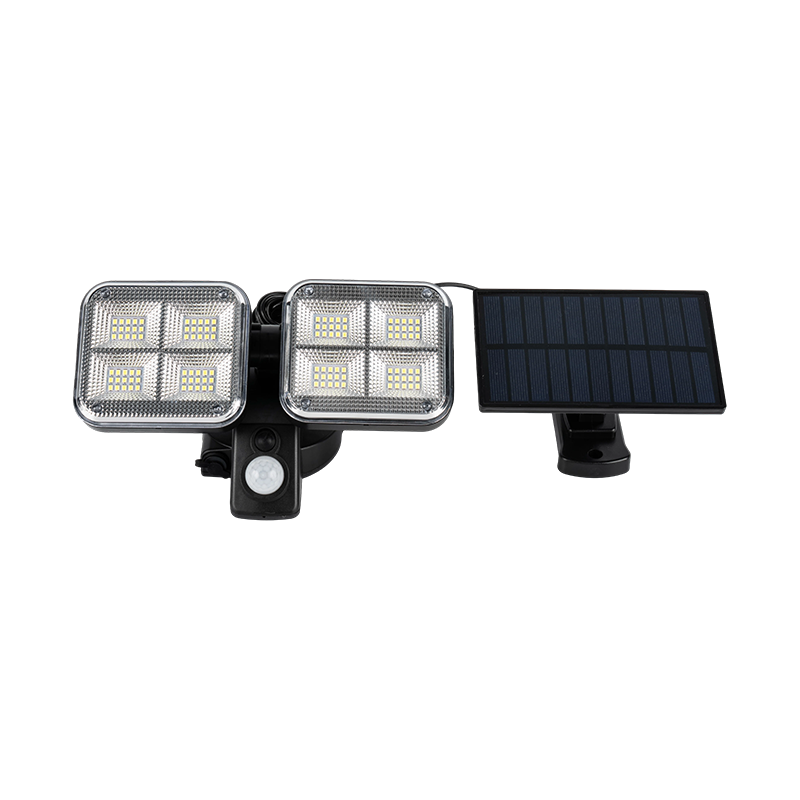

2102: Light Beads: 100 LED; Brightness: 380 lm; Version: Separated panel + 4.6m cable; Best For: Shaded/indoor spots, flexible install
2108: Light Beads: 120 LED; Brightness: 230 lm; Version: Integrated; Best For: Compact walls, soft lighting
2109: Light Beads: 120 LED; Brightness: 230 lm; Version: Separated panel + 4.6m cable; Best For: Shaded/indoor spots, ambient lighting
Buying Tip: If the installation spot gets plenty of sunlight, choose the integrated 2101 / 2108; if the spot is shaded or you want to install indoors, choose the separated 2102 / 2109 and place the solar panel in a sunny spot.

Specifications

Item Specification
Solar Panel Polycrystalline laminated, 137×80mm, 5.5V / 280mA / 1.5W
Sensor PIR, detection distance 3–5m, angle 120°
Battery 2×1200mAh 18650 rechargeable
Light Beads 100–120 LEDs
Brightness 380 lm (100 LED) / 230 lm (120 LED)
Housing ABS/PS
Product Size 2101: 12×22×12 cm · 2102: 22×12×11 cm · 2108: 22×12.5×15 cm · 2109: 22×11×12.5 cm
Accessories Screw pack, manual (2102 / 2109 add 4.6m charging cable)
Gift Box 190×175×90 mm (2101/2102) · 190×175×98 mm (2108/2109)
Packing 40 pcs/ctn · 21/24 kg (2101/2102) · 22/26 kg (2108/2109) · 72×40×47cm (2101/2102) / 72×40×51 cm (2108/2109)



Application Scenarios
Front door & gate · Garden & courtyard walls · Balcony & porch · Pathway & corridor · Garage wall · Shed & utility room indoors (2102 / 2109) · Shaded eaves & covered walkways (2102 / 2109) · Rental homes & apartments where wiring is not allowed

FAQ
Q: What is the difference between 2101/2108 and 2102/2109?
A: 2101 and 2108 are integrated solar wall lights — panel and lamp in one unit, best for sunny mounting spots. 2102 and 2109 come with a separated solar panel and a 4.6m charging cable, so you can install the lamp indoors or in shaded areas while the panel charges in sunlight.
Q: Can the separated version (2102/2109) be used indoors?
A: Yes. The lamp body can be installed indoors or outdoors; only the separated solar panel needs to be placed in a location with enough direct sunlight for charging.
Q: How does the 4.6m cable help?
A: It extends the distance between the solar panel and the lamp, solving the common problem of insufficient sunlight at the installation position.
Q: When does the light turn on?
A: Only at night or in low-light conditions. During the day, the solar panel charges the battery.
Q: How long does it stay on after motion?
A: It turns off (or back to dim) about 20 seconds after motion stops.
