SSL7801/7802/7807/7809 Solar Sensor Camping Lantern

Series Overview

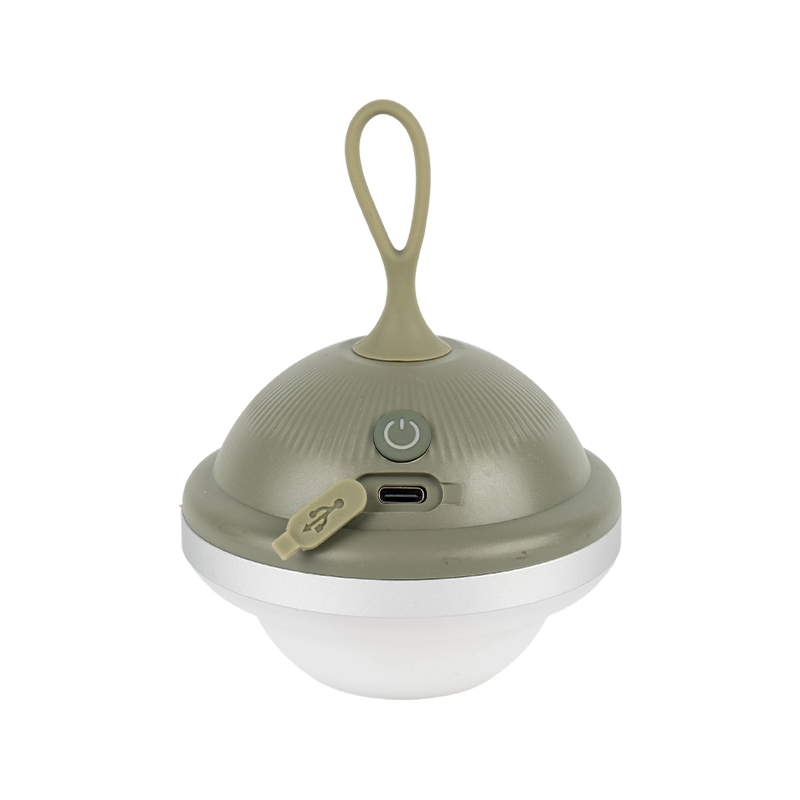

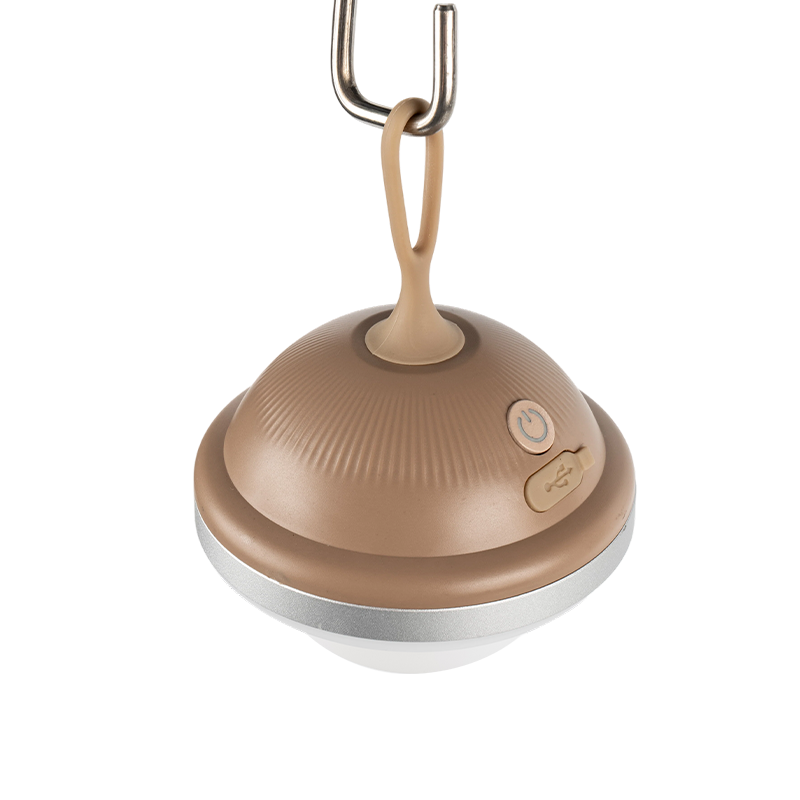

The JD-780X series is a family of solar-powered camping lanterns that pair a high-efficiency polycrystalline solar panel with a smart PIR motion sensor — delivering bright light exactly when you need it, with zero energy cost and zero wiring. The four models (JD-7801, JD-7802, JD-7807 and JD-7809) share the same rugged ABS/PC construction, dual solar panels, 4-in-1 smart lighting modes and a 2×18650 rechargeable battery, while offering different sizes and brightness levels from 230 to 320 lumens. Whatever the trip, backyard evening or emergency kit — there is a 780X lantern that fits.


Description
Parameter JD-7801 JD-7802
Product name Solar sensor camping lantern
Materials ABS / PC
Body size φ11 × 16 cm φ12 × 16.5 cm
Solar panel 2× polycrystalline laminated, 70 × 40 mm (7801,7802)
Solar output 5.5 V / 60 mA / 0.35 W
Motion sensor PIR, detection 3–5 m, angle 120°
Light source 16 SMD + 1 filament 16 SMD + 3 filaments
Brightness 230 lm 280 lm
Working voltage 3.7 V
Working current 170 mA 170 mA
Power 0.7 W 0.7 W
Battery 2 × 18650 3.7 V 1200 mAh (4.44 Wh)
Charging Solar panel + Type-C cable
Lighting modes 4 modes: motion-sensor / sensor + dim / low steady / high steady
Color box 113 × 113 × 168 mm, 347 g 113 × 113 × 168 mm, 367 g
Carton quantity 48 pcs 48 pcs
Carton size 48 × 48 × 52 cm 48 × 48 × 52 cm
Parameter

Key Features & Benefits
100% solar powered, zero energy cost. Dual polycrystalline laminated solar panels (5.5 V / 0.35 W) soak up daylight all day and light up for free all night — no outlet, no fuel, no replacement batteries.
Smart PIR motion sensor. Detects movement up to 3–5 m within a 120° angle. The light turns bright the moment someone approaches at night, and turns off about 20 seconds after they leave — light when you need it, power saved when you don't.
4-in-1 lighting modes. 1) Motion-sensor mode: bright on approach, off ~20 s after leaving. 2) Motion-sensor + dim mode: bright on approach, soft dim glow ~20 s after leaving. 3) Low steady mode: continuous soft light. 4) High steady mode: continuous bright light.
Dual charging — solar + Type-C backup. Beyond the sun, charge through the included 30 cm Type-C cable from a power bank, car or laptop on cloudy days.
Long-lasting 2×18650 battery. Twin 18650 cells (1200 mAh each, 4.44 Wh total) deliver dependable runtime through a full night of camping.
Warm, eye-friendly light. 16 SMD LEDs combined with warm filament-style LEDs (1–4 per model) give a cozy, amber-toned glow that is gentle on the eyes at night.
Durable ABS + PC + iron build. Impact-resistant and weather-friendly construction built for outdoor life.

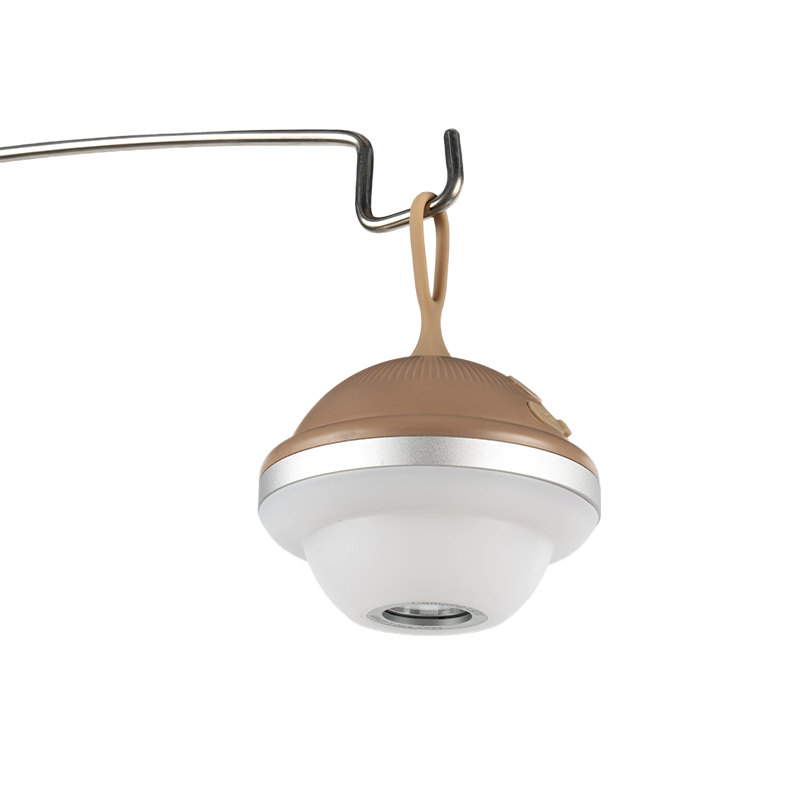

Hangs anywhere in seconds. A built-in hook plus screw kit is included for tent poles, branches, fences, patio umbrellas and walls.

Model Comparison

Model Brightness Light Source Solar Panel Body Size Power
JD-7801 230 lm 16 SMD + 1 filament LED 70 × 40 mm (×2) φ11 × 16 cm 0.7 W
JD-7802 280 lm 16 SMD + 3 filament LEDs 70 × 40 mm (×2) φ12 × 16.5 cm 0.7 W
JD-7807 290 lm 16 SMD + 2 filament LEDs 75 × 45 mm (×2) φ11 × 16 cm 0.7 W
JD-7809 320 lm 16 SMD + 4 filament LEDs 75 × 45 mm (×2) φ12 × 17.5 cm 0.75 W


Model Highlights

7801 — Compact, budget-friendly essential (230 lm). The lightest and most compact lantern in the series, with one warm filament LED and 230 lumens of soft light. A smart choice for hikers, kids' camps and emergency kits where every gram counts.
7802 — Warmer glow, taller body (280 lm). Three warm filament LEDs create a cozy, campfire-like atmosphere, while the slightly taller body (φ12 × 16.5 cm) keeps the same 4.44 Wh battery. Ideal for tabletop camping and family dinners outdoors.
7807 — Balanced performer with a bigger solar panel (290 lm). Pairs a generous 75 × 45 mm solar panel with 290 lumens in the compact φ11 × 16 cm body — the best pick for off-grid trips where the sun needs to do more of the work.
7809 — Series flagship, maximum brightness (320 lm). The brightest of the four: four warm filament LEDs joined by 16 SMD LEDs deliver 320 lumens from the largest body (φ12 × 17.5 cm). Perfect as a main tent lantern or family backyard light.

Recommended Use Scenarios

Camping, hiking and tent lighting
Night fishing and outdoor sports
BBQ evenings, patio and balcony dinners
Garden paths, doorways and walkways
Emergency and power-outage kits
Garages, sheds, warehouses and stairways
Kids' night light and bedside reading
Outdoor markets, food stalls and kiosks
